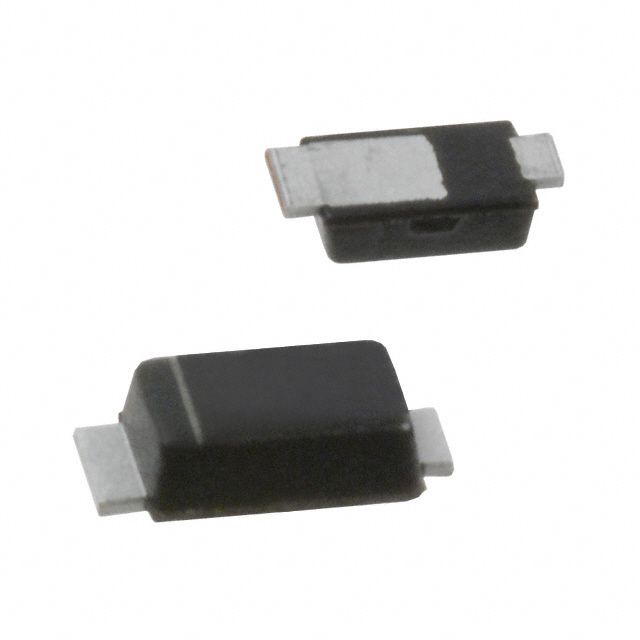

The Diodes PD3Z284C6V8-7 is a Zener diode with a DC rated voltage of 6.8V and a voltage tolerance of 6%. It has a maximum power dissipation of 500mW and a maximum reverse current of 2uA. The diode is available in a 2-pin PowerDI 323 package and is suitable for surface mount applications. It has a maximum operating temperature of 150°C and a minimum operating temperature of -65°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes PD3Z284C6V8-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes PD3Z284C6V8-7 technical specifications.
| Height | 0.65mm |
| Impedance | 15R |
| Lead Free | Lead Free |
| Length | 1.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 2uA |
| Max Reverse Leakage Current | 2uA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 6% |
| DC Rated Voltage | 6.8V |
| Voltage Tolerance | 6% |
| Width | 1.25mm |
| Zener Voltage | 6.8V |
| RoHS | Compliant |
