Schottky rectifier diode for general-purpose rectification, featuring a 5A average rectified current and a 40V repetitive reverse voltage. This single-phase, single-element device offers a 5A forward current and a 150A maximum forward surge current. Designed for surface mounting, it operates within a temperature range of -65°C to 150°C and is housed in a compact, green plastic POWERDI5 package with 3 pins. The component is RoHS compliant and available in tape and reel packaging.
Current Rating5A
MountingSurface Mount
PolarityStandard
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Diodes PDS540-13 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Diodes PDS540-13 technical specifications.
General
| Average Rectified Current | 5A |
| Current Rating | 5A |
| Forward Current | 5A |
| Height | 1.15mm |
| Lead Free | Lead Free |
| Length | 4.05mm |
| Max Forward Surge Current (Ifsm) | 150A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 250uA |
| Max Reverse Voltage (DC) | 40V |
| Mount | Surface Mount |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 150A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 40V |
| Weight | 0.003386oz |
| Width | 5.45mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes PDS540-13 Datasheet
Download the complete datasheet for Diodes PDS540-13 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

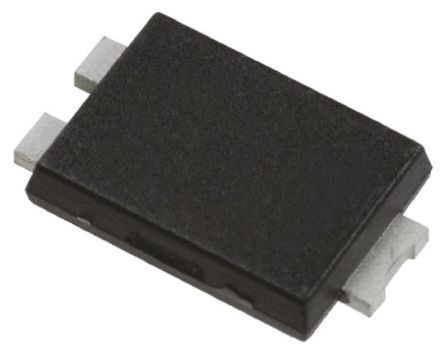

Product Images
