Diodes
PI2DBS212ZHEX
Multiplexer And Demux/Decoder, 2DBS Series, 1-Func, 4 Line Input, 8 Line Output, True Output, GREEN, MO-220I/WMFD, TQFN-28
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Diodes PI2DBS212ZHEX technical specifications.
General
Logic Function
Multiplexer, Demultiplexer
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.8V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Channels
2
Number of Inputs
8
Number of Outputs
4
On-State Resistance
10R
Package Quantity
3500
Packaging
Tape and Reel
Power Dissipation
500mW
Radiation Hardening
No
RoHS Compliant
Yes
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Diodes PI2DBS212ZHEX Datasheet
Download the complete datasheet for Diodes PI2DBS212ZHEX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

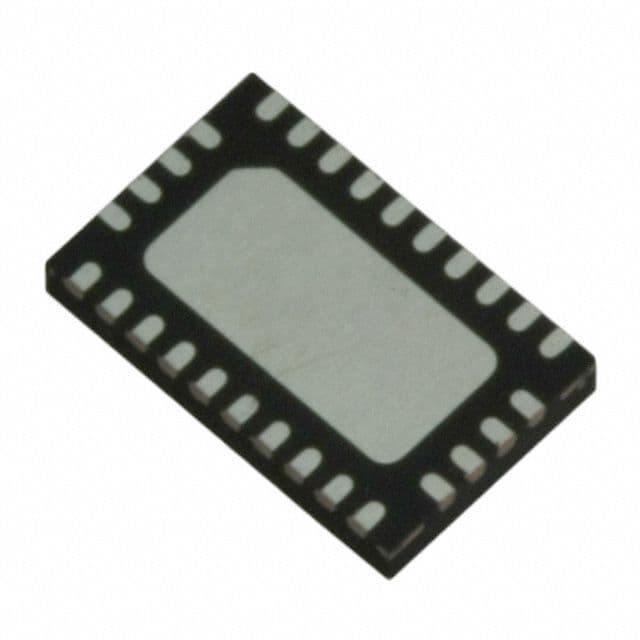

Product Images
