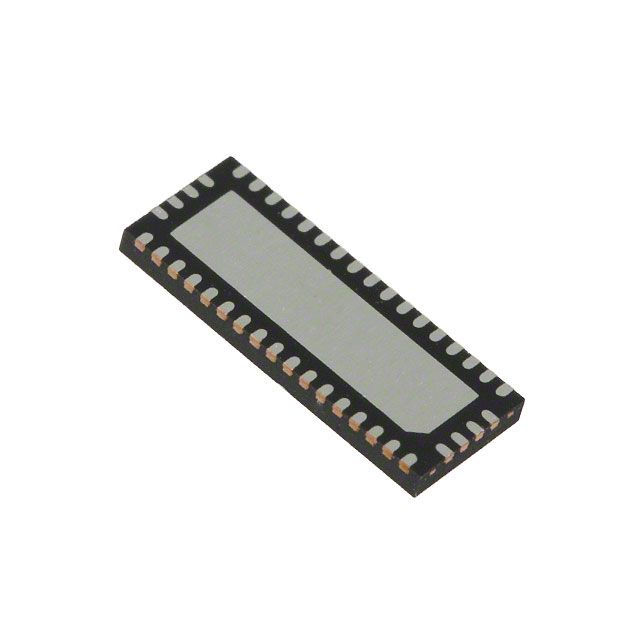

The PI3EQX7742AIZHE is a 4-channel interface IC from Diodes, operating at 5Gbps with a CML input. It is designed to function within the temperature range of -40°C to 85°C and requires a 3.3V operating supply voltage. The device consumes 250mA of current and is available in a 41-piece HVQCCN package, packaged in rail/Tube. The PI3EQX7742AIZHE is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes PI3EQX7742AIZHE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Data Rate | 5Gbps |
| Input | CML |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Channels | 4 |
| Number of Ports | 2 |
| Operating Supply Current | 250mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 41 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Diodes PI3EQX7742AIZHE to view detailed technical specifications.
