Technical Specifications
Diodes PI3PCIE2415ZHEX technical specifications.
General
| Package/Case | TQFP |
| Logic Function | Multiplexer, Demultiplexer |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Registers | 630 |
| On-State Resistance | 12R |
| Operating Supply Current | 2.5mA |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| RAM Size | 4608b |
| RoHS Compliant | Yes |
| Series | PCI Express, TDP™ |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Diodes PI3PCIE2415ZHEX Datasheet
Download the complete datasheet for Diodes PI3PCIE2415ZHEX to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

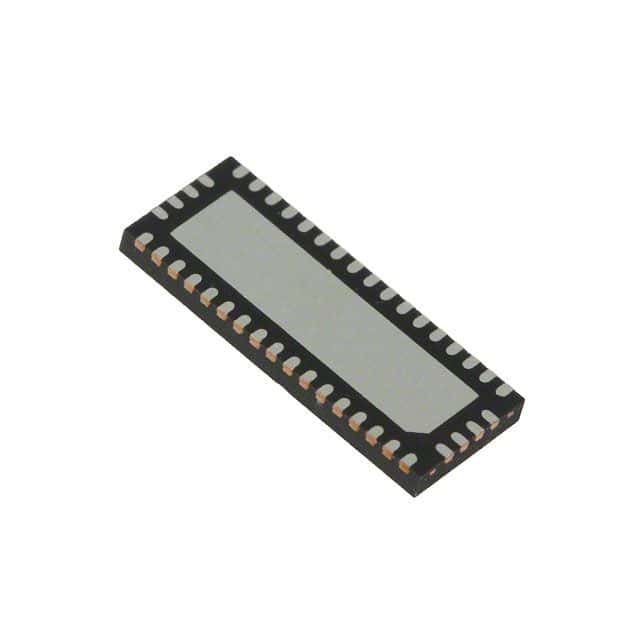

Product Images
