Diodes
PI4ULS3V08MZLEX
Bus Transceiver, 4ULS Series, 2-Func, 4-Bit, True Output, CMOS, GREEN, MO-220, TQFN-32
Quick Jump:
Technical Specifications
Diodes PI4ULS3V08MZLEX technical specifications.
General
Data Rate
90Mbps
Direction
Bidirectional
Lead Free
Lead Free
Logic Function
Level Shifter, Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Bits
8
Number of Channels
8
Output Type
Voltage, 3-STATE
Package Quantity
3500
Packaging
Tape and Reel
Propagation Delay
4ns
RoHS Compliant
Yes
Series
ULS
Compliance
RoHS
Compliant
Datasheet
Diodes PI4ULS3V08MZLEX Datasheet
Download the complete datasheet for Diodes PI4ULS3V08MZLEX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

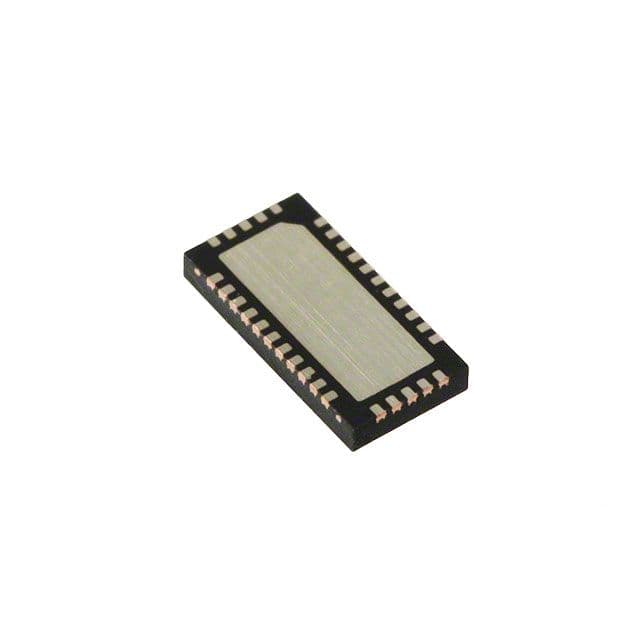

Product Images
