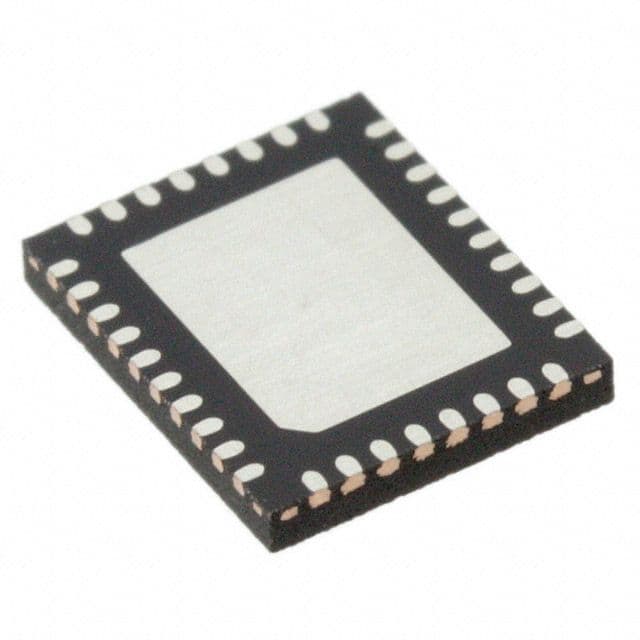

The PI4ULS3V08ZFE is a dual 3-STATE bidirectional translator with 8 channels, operating at data rates up to 180Mbps. It is a surface mount device with a propagation delay of 7ns and a quiescent current of 10uA. The device is RoHS compliant and operates over a temperature range of -40°C to 85°C. It is available in a 20-pin HVQCCN package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes PI4ULS3V08ZFE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes PI4ULS3V08ZFE technical specifications.
| Channel Type | Bidirectional |
| Data Rate | 180Mbps |
| High Level Output Current | -12mA |
| Logic Function | Translator |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Channels | 8 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Output Type | 3-STATE |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 7ns |
| Quiescent Current | 10uA |
| RoHS Compliant | Yes |
| Series | ULS |
| Turn-On Delay Time | 7ns |
| RoHS | Compliant |
Download the complete datasheet for Diodes PI4ULS3V08ZFE to view detailed technical specifications.
