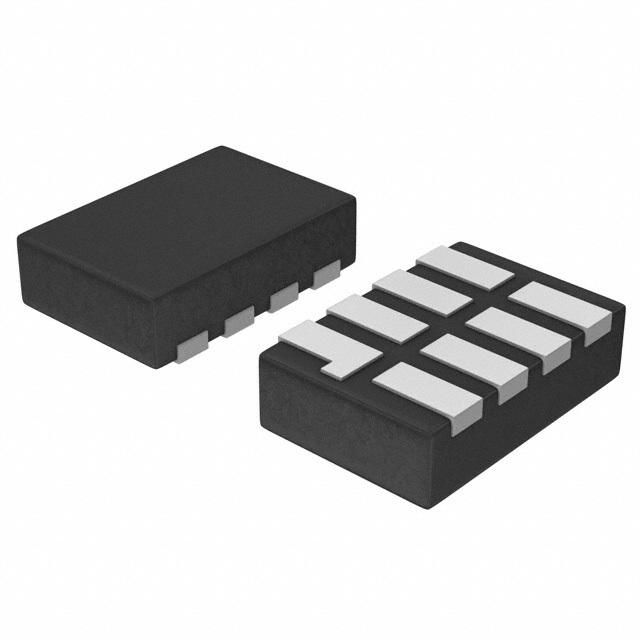

2-bit, true output bus transceiver, featuring a 1-function logic level shifter. This surface mount integrated circuit operates at a maximum data rate of 20Mbps with a propagation delay of 30ns. Designed for a wide temperature range from -40°C to 85°C, it offers 2 channels and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes PI4ULS5V202XVEX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes PI4ULS5V202XVEX technical specifications.
| Data Rate | 20Mbps |
| Logic Function | Level Shifter |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Propagation Delay | 30ns |
| RoHS Compliant | Yes |
| Series | ULS |
| RoHS | Compliant |
