General purpose rectifier diode, 1-phase, 1-element, featuring a 400V repetitive reverse voltage (Vrrm) and 3A average rectified current. This silicon diode offers a 100A peak non-repetitive surge current and a maximum reverse current of 10µA. Packaged in an SMC case with SMD/SMT termination, it operates from -65°C to 150°C and is RoHS compliant.
PackageSMC
Capacitance40pF
Current Rating3A
MountingSurface Mount, Stud
Quick Jump:
Technical Specifications
Diodes S3G-13-F technical specifications.
General
Average Rectified Current
3A
Capacitance
40pF
Package/Case
SMC
Current Rating
3A
Forward Current
3A
Height
2.42mm
Lead Free
Lead Free
Length
7.11mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
10uA
Max Reverse Voltage (DC)
400V
Max Surge Current
100A
Mount
Surface Mount, Stud
Output Current
3A
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
100A
Polarity
Standard
Radiation Hardening
No
Reverse Voltage (DC)
400V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
400V
Weight
0.007408oz
Width
6.22mm
Compliance
RoHS
Compliant
Datasheet
Diodes S3G-13-F Datasheet
Download the complete datasheet for Diodes S3G-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

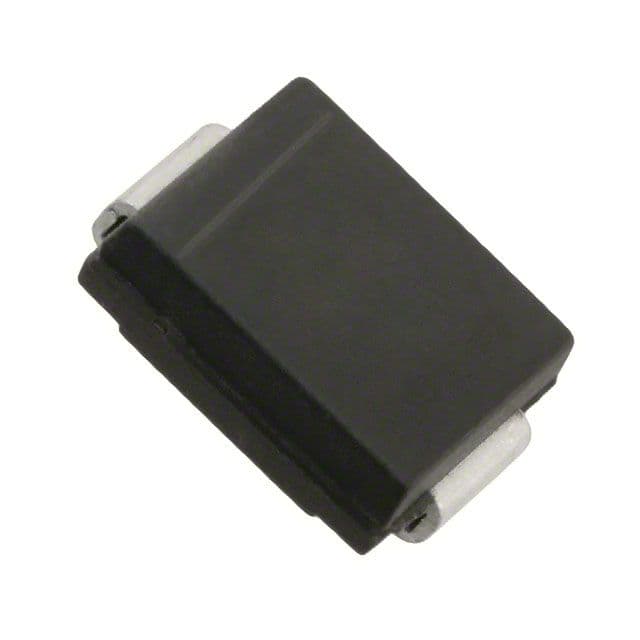

Product Images
