Technical Specifications
Diodes SBR2A40BLP-13 technical specifications.
General
| Average Rectified Current | 2A |
| Forward Current | 1A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 75uA |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Peak Non-Repetitive Surge Current | 12A |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101, SBR® |
Compliance
| RoHS | Compliant |
Datasheet
Diodes SBR2A40BLP-13 Datasheet
Download the complete datasheet for Diodes SBR2A40BLP-13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

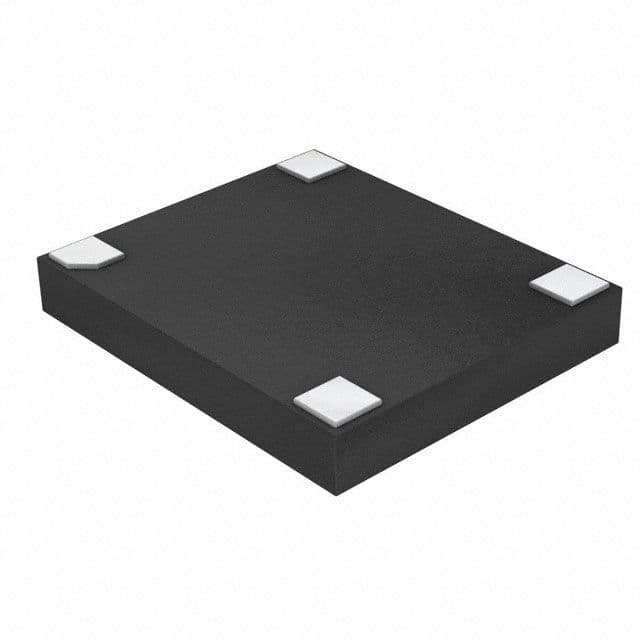

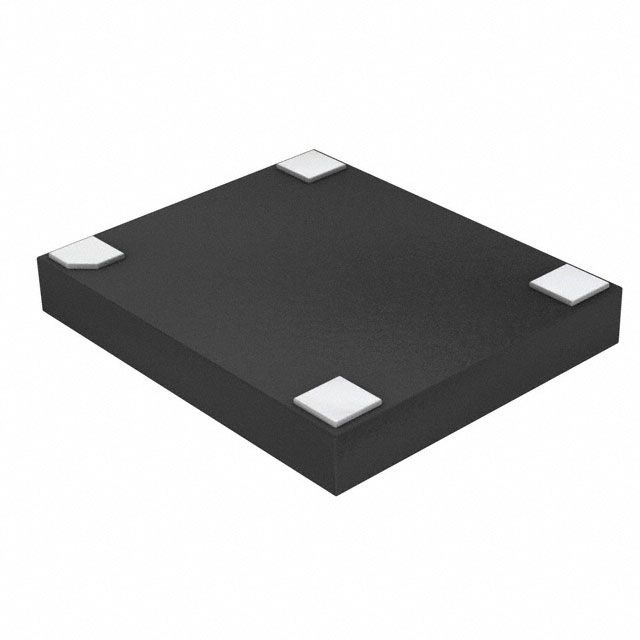

Product Images
