Technical Specifications
Diodes SBR3A40SA-13 technical specifications.
General
| Average Rectified Current | 3A |
| Package/Case | SMA |
| Forward Current | 3A |
| Height | 2.1mm |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Forward Surge Current (Ifsm) | 50A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 400uA |
| Max Reverse Voltage (DC) | 40V |
| Mount | Surface Mount |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 50A |
| Power Dissipation | 1.2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | SBR® |
| Weight | 0.002258oz |
| Width | 2.92mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes SBR3A40SA-13 Datasheet
Download the complete datasheet for Diodes SBR3A40SA-13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

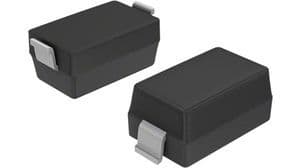

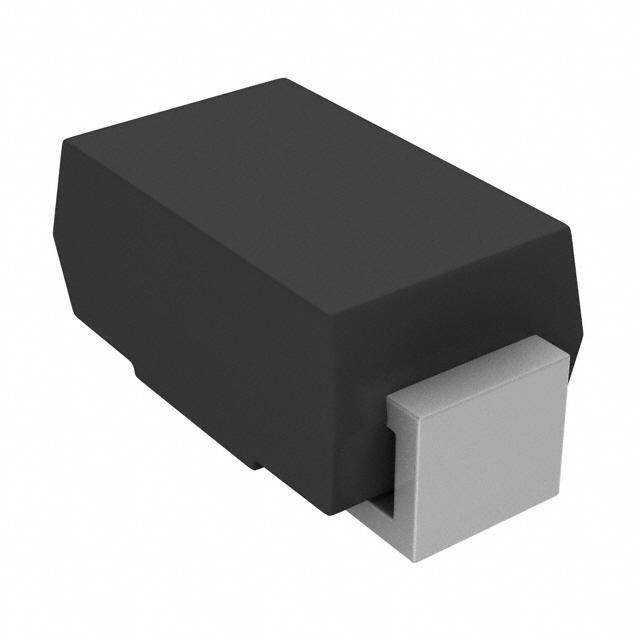

Product Images
