Technical Specifications
Diodes SBR60A300CT technical specifications.
General
| Average Rectified Current | 30A |
| Package/Case | TO-220AB |
| Forward Current | 60A |
| Height | 9.01mm |
| Length | 10.66mm |
| Max Forward Surge Current (Ifsm) | 235A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 300V |
| Max Reverse Current | 100uA |
| Max Reverse Voltage (DC) | 300V |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 235A |
| Reverse Recovery Time | 50ns |
| RoHS Compliant | Yes |
| Series | SBR® |
| Termination | Solder |
| Weight | 0.211644oz |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes SBR60A300CT Datasheet
Download the complete datasheet for Diodes SBR60A300CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

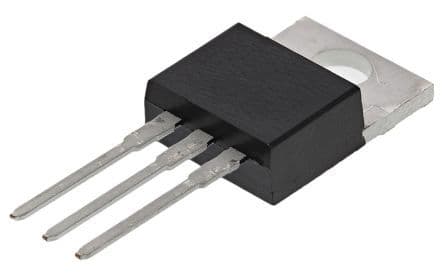

Product Images
