Schottky rectifier diode for general-purpose rectification. Features a 3A average rectified current and 40V repetitive reverse voltage. This surface mount component offers a 100A peak non-repetitive surge current and a maximum operating temperature of 150°C. Packaged in SMC with a capacitance of 300pF, it is lead-free and RoHS compliant.
PackageSMC
Capacitance300pF
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes SK34-7-F technical specifications.
General
| Average Rectified Current | 3A |
| Capacitance | 300pF |
| Package/Case | SMC |
| Current Rating | 3A |
| Forward Current | 3A |
| Height | 2.19mm |
| Lead Free | Lead Free |
| Length | 7.11mm |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 500uA |
| Max Reverse Voltage (DC) | 40V |
| Mount | Surface Mount |
| Output Current | 3A |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 100A |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 40V |
| Weight | 0.007408oz |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes SK34-7-F Datasheet
Download the complete datasheet for Diodes SK34-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

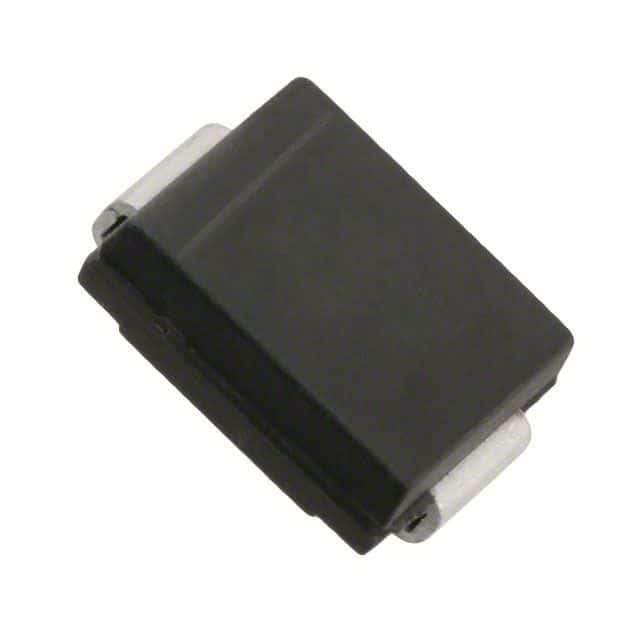

Product Images
