Unidirectional transient voltage suppressor diode with 400W peak pulse power dissipation and 15V reverse standoff voltage. Features a 16.7V minimum breakdown voltage, 24.4V clamping voltage, and 5µA leakage current. This silicon Zener diode, designed for surface mount applications in an SMA package, offers a maximum operating temperature of 150°C and is RoHS compliant.
PackageSMA
Capacitance760pF
Voltage Rating15V
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes SMAJ15A-13-F technical specifications.
General
| Capacitance | 760pF |
| Package/Case | SMA |
| Clamping Voltage | 24.4V |
| Clamping Voltage-Max | 24.4V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.1mm |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Length | 4.6mm |
| Max Breakdown Voltage | 18.5V |
| Min Breakdown Voltage | 16.7V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 16.4A |
| Max Power Dissipation | 400W |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 40A |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 16.4A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Dissipation | 400W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 16.7V |
| Reverse Standoff Voltage | 15V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 15V |
| Width | 2.92mm |
| Working Voltage | 15V |
Compliance
| RoHS | Compliant |
Datasheet
Diodes SMAJ15A-13-F Datasheet
Download the complete datasheet for Diodes SMAJ15A-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

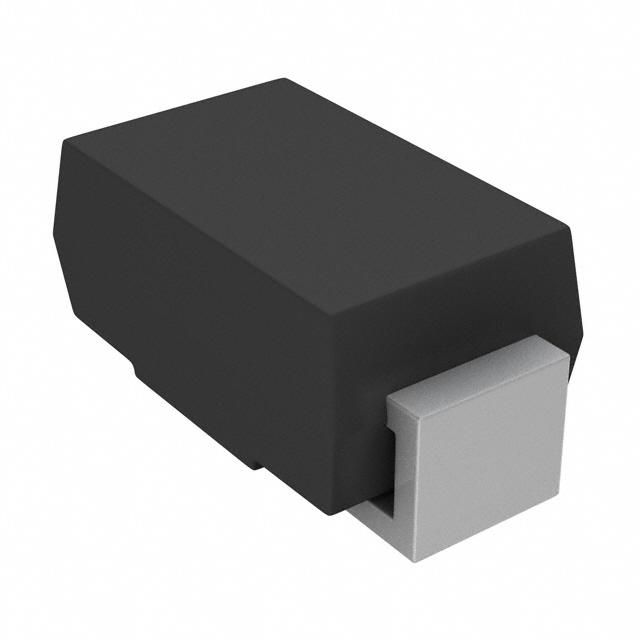

Product Images
