Unidirectional Transient Voltage Suppressor (TVS) diode offering 400W peak pulse power dissipation and 9.5A peak pulse current. Features a 26V reverse standoff voltage, 28.9V minimum breakdown voltage, and 42.1V clamping voltage. Designed for surface mount applications in an SMA package with a low leakage current of 5uA. Operates across a wide temperature range from -55°C to 150°C.
PackageSMA
Capacitance360pF
Voltage Rating26V
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes SMAJ26A-13-F technical specifications.
General
Capacitance
360pF
Package/Case
SMA
Clamping Voltage
42.1V
Clamping Voltage-Max
42.1V
Diode Type
ZENER
Direction
Unidirectional
Height
2.1mm
Lead Free
Lead Free
Leakage Current
5uA
Length
4.6mm
Max Breakdown Voltage
31.9V
Min Breakdown Voltage
28.9V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Output Current
9.5A
Max Power Dissipation
400W
Max Reverse Leakage Current
5uA
Max Surge Current
40A
Mount
Surface Mount
Number of Elements
1
Number of Unidirectional Channels
1
Package Quantity
5000
Packaging
Tape and Reel
Peak Pulse Current
9.5A
Peak Pulse Power
400W
Polarity
Unidirectional
Power Dissipation
400W
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
28.9V
Reverse Standoff Voltage
26V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
26V
Width
2.92mm
Working Voltage
26V
Compliance
RoHS
Compliant
Datasheet
Diodes SMAJ26A-13-F Datasheet
Download the complete datasheet for Diodes SMAJ26A-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

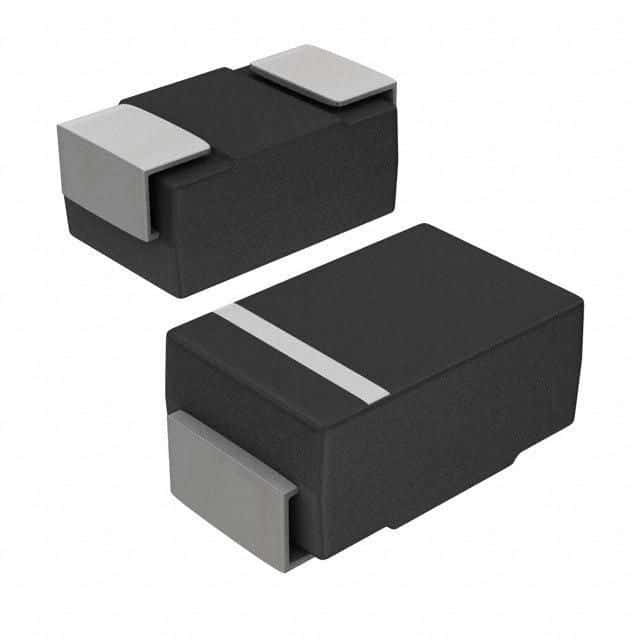

Product Images
