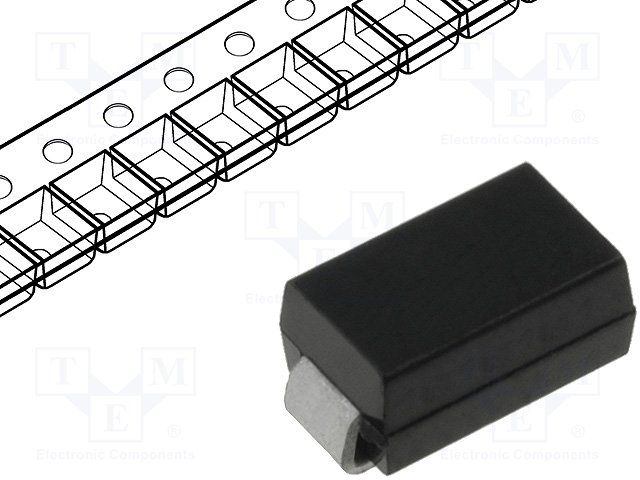

Unidirectional transient voltage suppressor diode with 400W peak pulse power dissipation. Features a 54V reverse standoff voltage and a 60V minimum breakdown voltage. Clamping voltage is 87.1V with a maximum of 38.9V. Operates from -55°C to 150°C, with a low leakage current of 5uA. Packaged in SMA for surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes SMAJ54A-13-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMA |
| Clamping Voltage | 87.1V |
| Clamping Voltage-Max | 38.9V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Length | 4.6mm |
| Max Breakdown Voltage | 29.5V |
| Min Breakdown Voltage | 60V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400W |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 40A |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 4.6A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Dissipation | 400W |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 60V |
| Reverse Standoff Voltage | 54V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 54V |
| RoHS | Compliant |
Download the complete datasheet for Diodes SMAJ54A-13-F to view detailed technical specifications.
