Unidirectional transient voltage suppressor diode, 400W peak pulse power, 70V working voltage, and 77.8V minimum breakdown voltage. Features a 100V clamping voltage and 5uA leakage current. Designed for surface mount applications in an SMA package, operating from -55°C to 150°C. This silicon diode offers 3.5A peak pulse current handling.
PackageSMA
Voltage Rating70V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Diodes SMAT70A-13 technical specifications.
General
| Package/Case | SMA |
| Clamping Voltage | 100V |
| Diode Type | ZENER |
| Height | 2.62mm |
| Lead Free | Contains Lead |
| Leakage Current | 5uA |
| Length | 4.6mm |
| Min Breakdown Voltage | 77.8V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400W |
| Max Surge Current | 3.5A |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 3.5A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 77.8V |
| Reverse Standoff Voltage | 70V |
| RoHS Compliant | No |
| Series | Automotive, AEC-Q101 |
| Termination | SMD/SMT |
| DC Rated Voltage | 70V |
| Width | 3.94mm |
| Working Voltage | 70V |
Compliance
| RoHS | Not Compliant |
Datasheet
Diodes SMAT70A-13 Datasheet
Download the complete datasheet for Diodes SMAT70A-13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

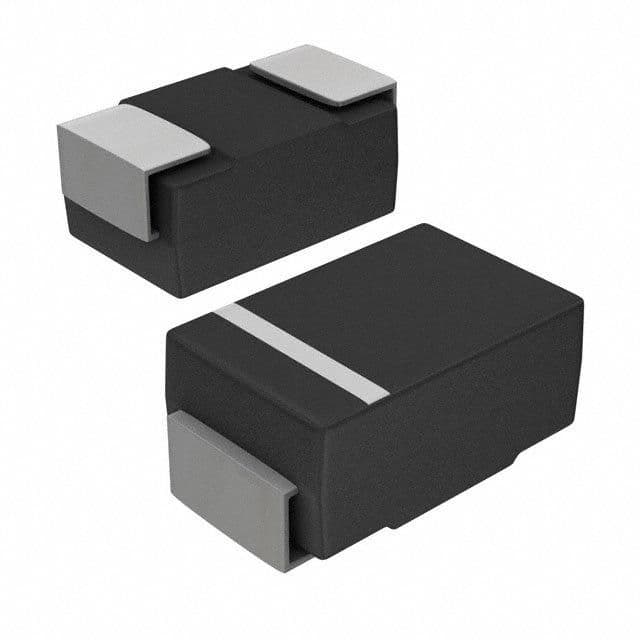

Product Images
