Unidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 15V reverse standoff voltage and a 600W peak pulse power rating. Offers a clamping voltage of 24.4V and a maximum breakdown voltage of 19.2V. Operates across a wide temperature range from -55°C to 150°C with a low leakage current of 5uA. Packaged in SMB for tape and reel distribution.
PackageSMB
Capacitance800pF
Voltage Rating15V
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes SMBJ15A-13-F technical specifications.
General
Capacitance
800pF
Package/Case
SMB
Clamping Voltage
24.4V
Clamping Voltage-Max
24.4V
Diode Type
ZENER
Direction
Unidirectional
Height
2.62mm
Lead Free
Lead Free
Leakage Current
5uA
Length
4.57mm
Max Breakdown Voltage
19.2V
Min Breakdown Voltage
16.7V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Output Current
24A
Max Power Dissipation
600W
Max Reverse Leakage Current
5uA
Max Surge Current
24A
Mount
Surface Mount
Number of Elements
1
Number of Unidirectional Channels
1
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
24A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
16.7V
Reverse Standoff Voltage
15V
RoHS Compliant
Yes
Series
SMBJ
Termination
SMD/SMT
DC Rated Voltage
15V
Width
3.9mm
Working Voltage
15V
Compliance
RoHS
Compliant
Datasheet
Diodes SMBJ15A-13-F Datasheet
Download the complete datasheet for Diodes SMBJ15A-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

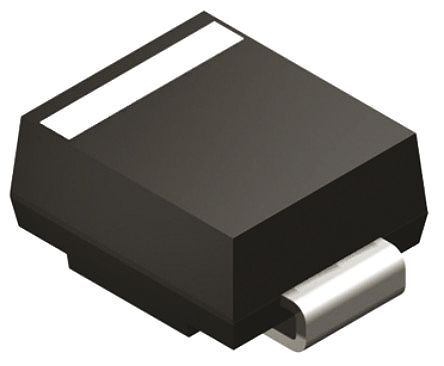

Product Images
