Unidirectional transient voltage suppressor diode with 600W peak pulse power dissipation. Features a 20V reverse standoff voltage and a 22.2V minimum breakdown voltage. Clamping voltage is 32.4V with a maximum reverse leakage current of 5uA. Designed for surface mount applications in an SMB package, operating from -55°C to 150°C.
PackageSMB
Voltage Rating20V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Diodes SMBJ20A-13-F technical specifications.
General
Package/Case
SMB
Clamping Voltage
32.4V
Clamping Voltage-Max
32.4V
Diode Type
ZENER
Direction
Unidirectional
Height
2.62mm
Lead Free
Lead Free
Leakage Current
5uA
Length
4.57mm
Max Breakdown Voltage
25.5V
Min Breakdown Voltage
22.2V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
600W
Max Reverse Leakage Current
5uA
Max Surge Current
18.5A
Mount
Surface Mount
Number of Elements
1
Number of Unidirectional Channels
1
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
18.5A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
22.2V
Reverse Standoff Voltage
20V
RoHS Compliant
Yes
Series
SMBJ
Termination
SMD/SMT
DC Rated Voltage
20V
Width
3.9mm
Working Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Diodes SMBJ20A-13-F Datasheet
Download the complete datasheet for Diodes SMBJ20A-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

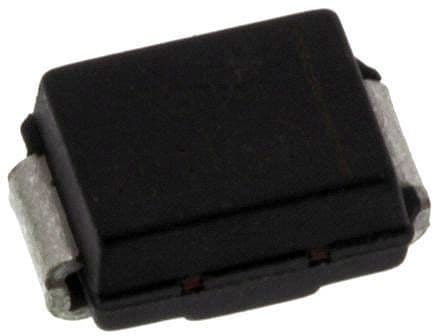

Product Images
