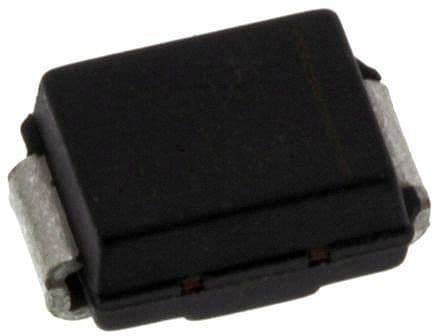

Bidirectional transient voltage suppressor diode, 600W peak pulse power, 6V working voltage, and 6.67V minimum breakdown voltage. Features a 10.3V clamping voltage and 1.6mA maximum reverse leakage current. This single-element silicon device is housed in an SMB package for surface mounting, operating from -55°C to 150°C.
Sign in to ask questions about the Diodes SMBJ6.0CA-13-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes SMBJ6.0CA-13-F technical specifications.
| Package/Case | SMB |
| Clamping Voltage | 10.3V |
| Clamping Voltage-Max | 96.8V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Height | 2.62mm |
| Lead Free | Lead Free |
| Leakage Current | 1.6mA |
| Length | 4.57mm |
| Max Breakdown Voltage | 76.7V |
| Min Breakdown Voltage | 6.67V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 1.6mA |
| Max Surge Current | 58.3A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 58.3A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Dissipation | 600W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6.67V |
| Reverse Standoff Voltage | 6V |
| RoHS Compliant | Yes |
| Series | SMBJ |
| Termination | SMD/SMT |
| DC Rated Voltage | 6V |
| Width | 3.9mm |
| Working Voltage | 6V |
| RoHS | Compliant |
