Unidirectional transient voltage suppressor diode, 600W peak pulse power, 60V working voltage. Features 66.7V minimum breakdown voltage and 76.7V maximum breakdown voltage. Offers a 96.8V clamping voltage with a low 5uA leakage current. Designed for surface mount applications in an SMB package, operating from -55°C to 150°C.
PackageSMB
Voltage Rating60V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Diodes SMBJ60A-13-F technical specifications.
General
| Package/Case | SMB |
| Clamping Voltage | 96.8V |
| Clamping Voltage-Max | 96.8V |
| Direction | Unidirectional |
| Height | 2.62mm |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Length | 4.57mm |
| Max Breakdown Voltage | 76.7V |
| Min Breakdown Voltage | 66.7V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 6.2A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 6.2A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Reverse Breakdown Voltage | 66.7V |
| Reverse Standoff Voltage | 60V |
| RoHS Compliant | Yes |
| Series | SMBJ |
| Termination | SMD/SMT |
| DC Rated Voltage | 60V |
| Width | 3.9mm |
| Working Voltage | 60V |
Compliance
| RoHS | Compliant |
Datasheet
Diodes SMBJ60A-13-F Datasheet
Download the complete datasheet for Diodes SMBJ60A-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

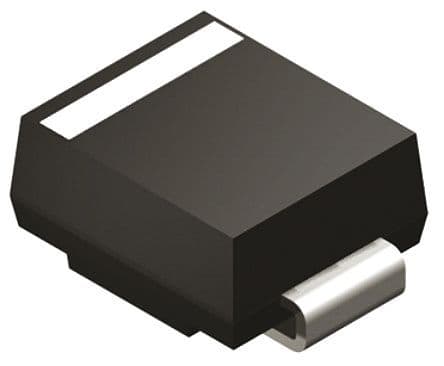

Product Images
