Bidirectional transient voltage suppressor diode for surface mount applications. Features 1.5kW peak pulse power dissipation and 12V reverse standoff voltage. Offers a clamping voltage of 19.9V with a maximum breakdown voltage of 14.7V. Operating temperature range from -55°C to 150°C, with low leakage current of 5uA. Packaged in tape and reel for automated assembly.
PackageSMC
Voltage Rating12V
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Diodes SMCJ12CA-13-F technical specifications.
General
| Package/Case | SMC |
| Clamping Voltage | 19.9V |
| Clamping Voltage-Max | 19.9V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Height | 2.3mm |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Length | 7.11mm |
| Max Breakdown Voltage | 14.7V |
| Min Breakdown Voltage | 13.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 200A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 75.3A |
| Peak Pulse Power | 1.5kW |
| Polarity | Bidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 13.3V |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 12V |
| Width | 6.22mm |
| Working Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Diodes SMCJ12CA-13-F Datasheet
Download the complete datasheet for Diodes SMCJ12CA-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

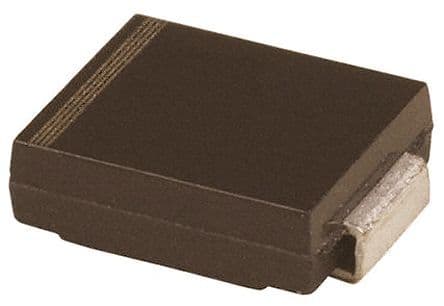

Product Images
