Unidirectional Transient Voltage Suppressor (TVS) diode, 1.5kW peak pulse power, 170V working voltage, and 275V clamping voltage. Features a 189V minimum breakdown voltage and 5µA maximum reverse leakage current. Designed for surface mount applications with a 2-pin SMC package, offering 150°C maximum operating temperature and lead-free, RoHS compliant construction.
PackageSMC
Voltage170V
Current55A
Voltage Rating170V
Quick Jump:
Technical Specifications
Diodes SMCJ170A-13-F technical specifications.
General
Package/Case
SMC
Clamping Voltage
275V
Clamping Voltage-Max
275V
Current
55A
Diode Type
ZENER
Direction
Unidirectional
Height
2.62mm
Lead Free
Lead Free
Leakage Current
5uA
Length
7.11mm
Max Breakdown Voltage
209V
Min Breakdown Voltage
189V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5kW
Max Reverse Leakage Current
5uA
Max Surge Current
200A
Mount
Surface Mount
Number of Elements
1
Number of Unidirectional Channels
1
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
5.5A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
189V
Reverse Standoff Voltage
170V
RoHS Compliant
Yes
Termination
SMD/SMT
Voltage
170V
DC Rated Voltage
170V
Width
6.22mm
Working Voltage
170V
Compliance
RoHS
Compliant
Datasheet
Diodes SMCJ170A-13-F Datasheet
Download the complete datasheet for Diodes SMCJ170A-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

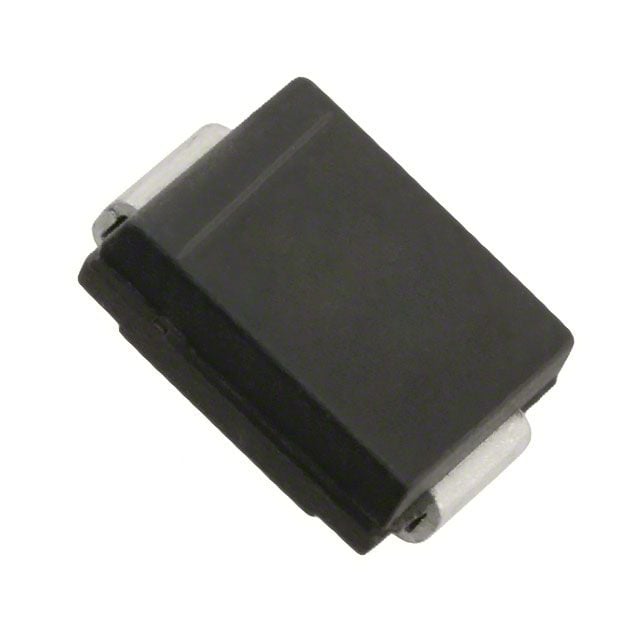

Product Images
