Unidirectional Transient Voltage Suppressor (TVS) diode, 1.5kW peak pulse power, designed for surface mount applications in an SMC package. Features a 60V reverse standoff voltage and 66.7V minimum breakdown voltage, with a clamping voltage of 96.8V. Offers a low leakage current of 5uA and a maximum surge current capability of 200A. Operates across a wide temperature range from -55°C to 150°C.
Sign in to ask questions about the Diodes SMCJ60A-13-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

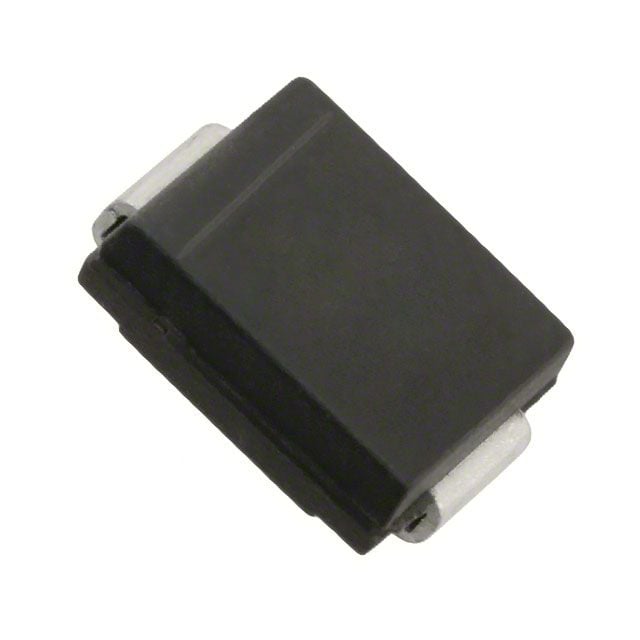

Diodes SMCJ60A-13-F technical specifications.
| Package/Case | SMC |
| Clamping Voltage | 96.8V |
| Clamping Voltage-Max | 96.8V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.62mm |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Length | 6.22mm |
| Max Breakdown Voltage | 73.7V |
| Min Breakdown Voltage | 66.7V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 200A |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 15.5A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 66.7V |
| Reverse Standoff Voltage | 60V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 60V |
| Width | 7.11mm |
| Working Voltage | 60V |
| RoHS | Compliant |
Download the complete datasheet for Diodes SMCJ60A-13-F to view detailed technical specifications.
