Unidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 75V working voltage, 83.3V minimum breakdown voltage, and 121V clamping voltage. Offers 1.5kW peak pulse power dissipation and a 200A maximum surge current capability. Operates across a wide temperature range from -55°C to 150°C with a low leakage current of 5uA. Packaged in tape and reel for efficient assembly.
Sign in to ask questions about the Diodes SMCJ75A-13-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

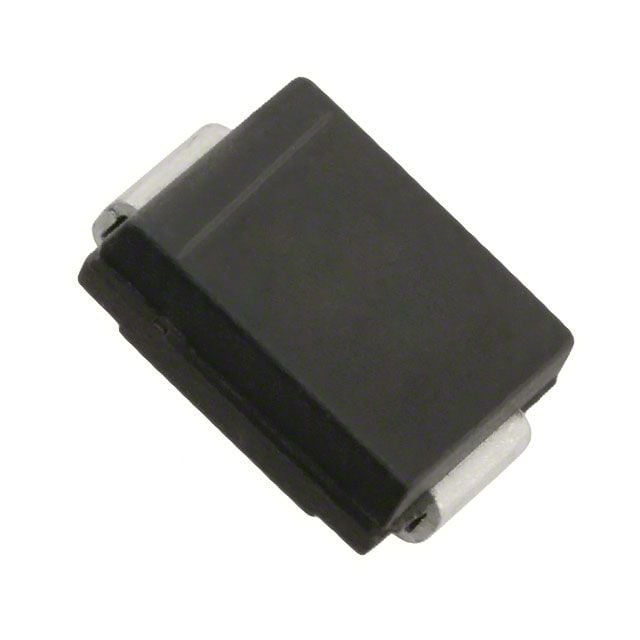

Diodes SMCJ75A-13-F technical specifications.
| Package/Case | SMC |
| Clamping Voltage | 121V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.62mm |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Length | 7.11mm |
| Min Breakdown Voltage | 83.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 200A |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 12.4A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 83.3V |
| Reverse Standoff Voltage | 75V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 75V |
| Width | 6.22mm |
| Working Voltage | 75V |
| RoHS | Compliant |
Download the complete datasheet for Diodes SMCJ75A-13-F to view detailed technical specifications.
