General purpose rectifier diode with 1A average rectified current and 1kV repetitive reverse voltage. Features a 1A forward current, 30A peak non-repetitive surge current, and 75ns reverse recovery time. This silicon diode is housed in a compact SMA surface mount package, operating from -65°C to 150°C. RoHS compliant and lead-free.
PackageSMA
Capacitance10pF
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes US1M-13-F technical specifications.
General
Average Rectified Current
1A
Capacitance
10pF
Package/Case
SMA
Current Rating
1A
Forward Current
1A
Height
2.1mm
Lead Free
Lead Free
Length
4.6mm
Max Forward Surge Current (Ifsm)
30A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Reverse Voltage (DC)
1kV
Max Surge Current
30A
Mount
Surface Mount
Output Current
1A
Package Quantity
5000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
75ns
Reverse Recovery Time-Max
75ns
Reverse Voltage
1kV
Reverse Voltage (DC)
1kV
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
1kV
Weight
0.002258oz
Width
2.92mm
Compliance
RoHS
Compliant
Datasheet
Diodes US1M-13-F Datasheet
Download the complete datasheet for Diodes US1M-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

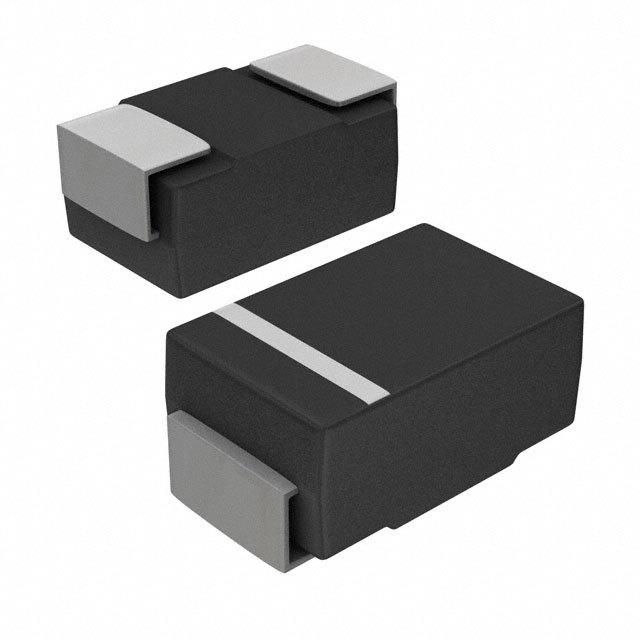

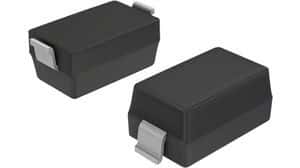

Product Images
