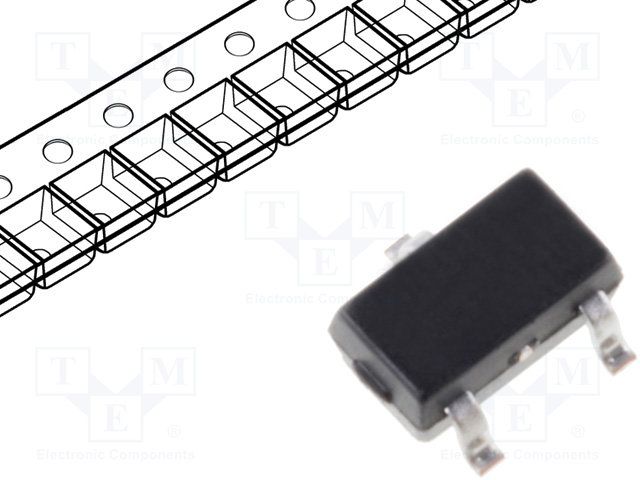

The ZHCS1000 is a general purpose rectifier diode with a maximum operating temperature of 125°C and a maximum power dissipation of 500mW. It has a maximum forward surge current of 12A and a maximum repetitive reverse voltage of 40V. The diode is packaged in a SOT-23 case and is suitable for surface mount technology. It is RoHS compliant but not Reach SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes ZHCS1000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-23 |
| Forward Current | 1A |
| Max Forward Surge Current (Ifsm) | 12A |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 500mW |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 3.05mm |
| RoHS | Compliant |
