General purpose rectifier diode featuring Schottky barrier technology. This surface mount component offers a 1A average rectified current and a 40V repetitive reverse voltage. It operates within a temperature range of -55°C to 125°C and has a maximum power dissipation of 500mW. The diode is housed in a SOT-23 package with 3 pins and exhibits a reverse recovery time of 12ns.
PackageSOT-23
Capacitance25pF
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes ZHCS1000TA technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 25pF |
| Package/Case | SOT-23 |
| Current Rating | 1A |
| Forward Current | 1A |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Forward Surge Current (Ifsm) | 12A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 100uA |
| Max Reverse Voltage (DC) | 40V |
| Mount | Surface Mount |
| Output Current | 1A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 12A |
| Polarity | Standard |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 12ns |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 40V |
| Weight | 0.000282oz |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ZHCS1000TA Datasheet
Download the complete datasheet for Diodes ZHCS1000TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

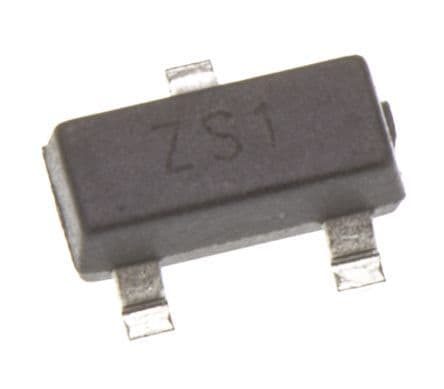

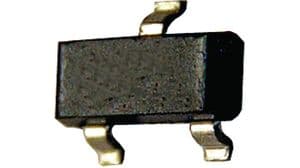

Product Images
