Technical Specifications
Diodes ZRC330A03 technical specifications.
General
| Package/Case | TO-92 |
| Cathode Current | 20uA |
| Height | 4.01mm |
| Length | 4.77mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 3.3V |
| Mount | Through Hole |
| Operating Supply Current | 5mA |
| Output Current | 5mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Reference Type | Shunt |
| Reference Voltage | 3.3V |
| RoHS Compliant | Yes |
| Tolerance | 3% |
| Width | 2.41mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ZRC330A03 Datasheet
Download the complete datasheet for Diodes ZRC330A03 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

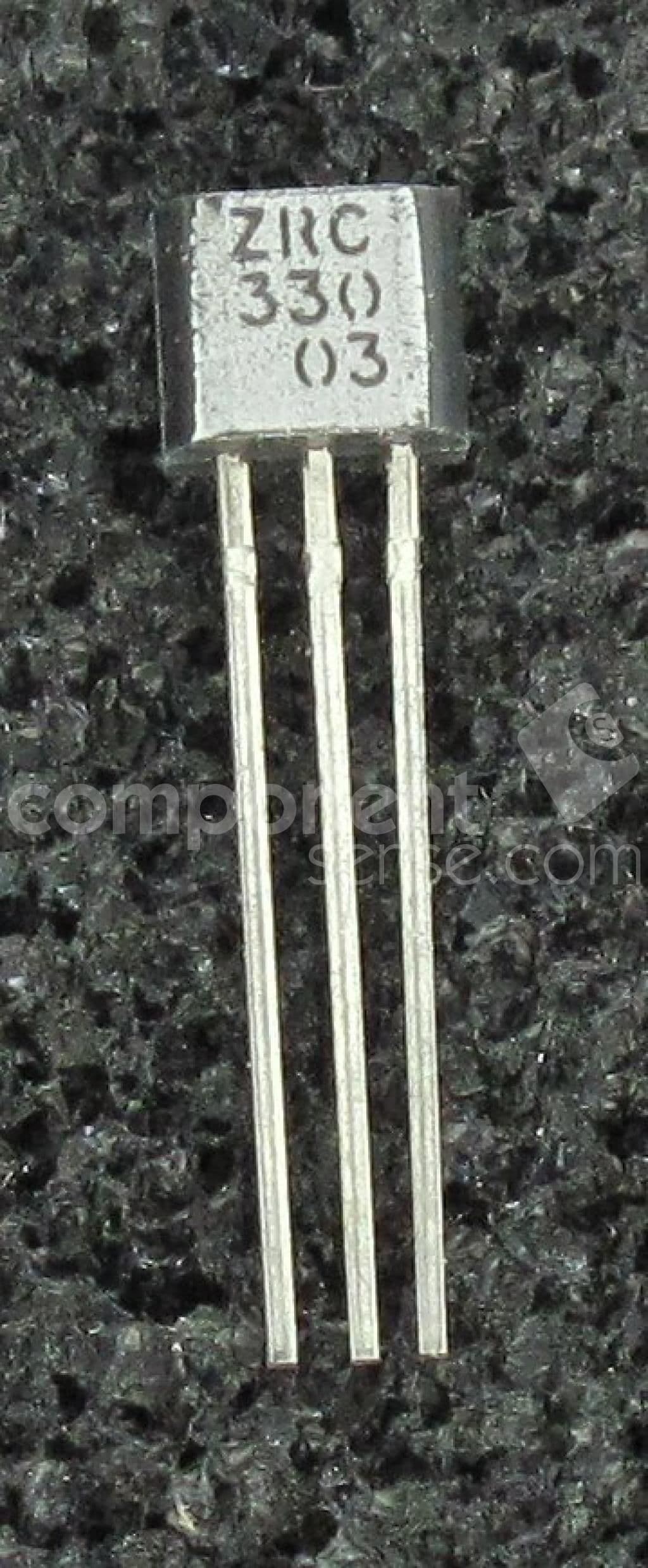

Product Images
