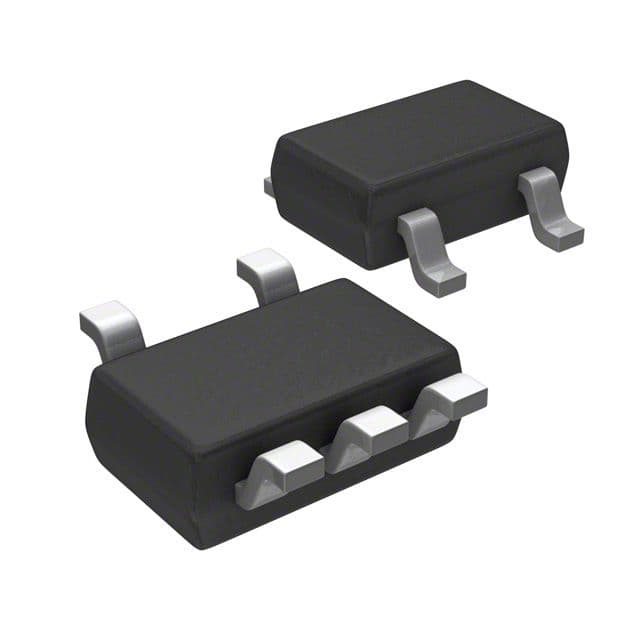

Fixed positive linear voltage regulator with a 2.6V output voltage and 150mA maximum output current. Features a low 155mV dropout voltage and 50uA quiescent current. Operates from a 2V to 5.5V input voltage range with 3% accuracy. This surface mount component is housed in a compact 5-pin SC-70 package, measuring 2mm x 1.25mm x 1mm. Compliant with RoHS and REACH SVHC standards.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Diodes ZXCL260H5TA technical specifications.
General
| Accuracy | 3% |
| Dropout Voltage | 155mV |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Min Current Limit | 160mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Min Output Voltage | 2.6V |
| Max Power Dissipation | 300mW |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 2.6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Weight | 0.000705oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ZXCL260H5TA Datasheet
Download the complete datasheet for Diodes ZXCL260H5TA to view detailed technical specifications.
