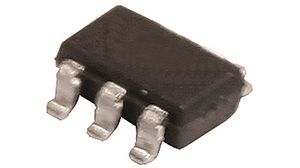

Single-channel MOSFET driver with 8A peak output current and 39.6V maximum output voltage. Features 1ns propagation delay and 82ns fall time, operating from 0V to 40V supply. Surface mountable in a compact SOT-23 package, this integrated circuit offers 1.1W power dissipation and a wide operating temperature range of -55°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes ZXGD3004E6TA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes ZXGD3004E6TA technical specifications.
| Package/Case | SOT-23 |
| Channel Type | Single |
| Fall Time | 82ns |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 8A |
| Max Output Voltage | 39.6V |
| Min Output Voltage | 400mV |
| Max Power Dissipation | 1.1W |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 0V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 50nA |
| Output Current | 1.9A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.1W |
| Propagation Delay | 1ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Termination | SMD/SMT |
| Turn-On Delay Time | 1ns |
| Weight | 0.000529oz |
| Width | 1.8mm |
| RoHS | Not CompliantNo |
