High-efficiency LED driver IC featuring 1A output current and 30V maximum output voltage. Operates with PWM dimming and a 1MHz switching frequency, achieving up to 95% efficiency. Input voltage range is 7V to 30V, with a maximum power dissipation of 1W. This surface mount component is housed in a 5-pin TSOT package and is RoHS compliant.
Frequency1MHz
PackageTSOT
MountingSurface Mount
Power1W
Quick Jump:
Technical Specifications
Diodes ZXLD1360ET5TA technical specifications.
General
Package/Case
TSOT
Dimming
PWM
Efficiency
95%
Frequency
1MHz
Interface
Serial
Lead Free
Lead Free
Max Input Voltage
30V
Min Input Voltage
7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
30V
Min Output Voltage
-300mV
Max Power Dissipation
1W
Max Supply Current
1A
Max Supply Voltage
30V
Min Supply Voltage
7V
Mount
Surface Mount
Nominal Supply Current
1A
Number of Outputs
1
Output Current
1A
Output Current per Channel
1A
Output Voltage
30V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
1W
Quiescent Current
1.8mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Switching Frequency-Max
1MHz
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Diodes ZXLD1360ET5TA Datasheet
Download the complete datasheet for Diodes ZXLD1360ET5TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

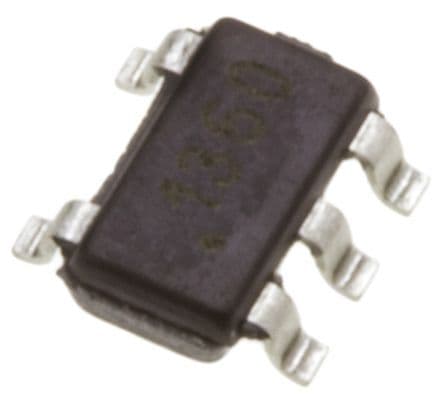

Product Images
