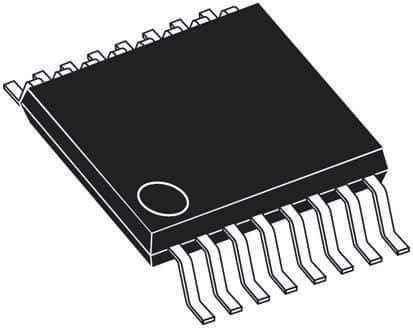

15-segment LED driver IC featuring PWM dimming and a 1MHz switching frequency. Delivers up to 300mA output current with a 60V output voltage. Operates from a 6.3V to 60V input voltage range, boasting 92% efficiency. Surface mountable in a 16-pin TSSOP package, suitable for automotive applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes ZXLD1370EST16TC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Dimming | PWM |
| Efficiency | 92% |
| Frequency | 1MHz |
| High Level Output Current | 18mA |
| Lead Free | Lead Free |
| Max Input Voltage | 60V |
| Min Input Voltage | 6.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 11uA |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Segments | 15 |
| Output Current | 300mA |
| Output Voltage | 60V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Switching Frequency-Max | 1MHz |
| Topology | Buck-Boost |
| RoHS | Compliant |
Download the complete datasheet for Diodes ZXLD1370EST16TC to view detailed technical specifications.
