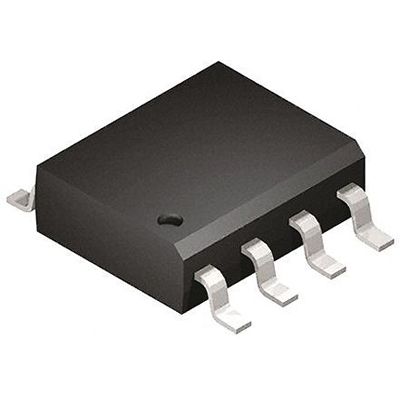

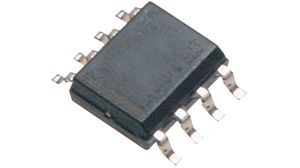

N-Channel and P-Channel Silicon Metal-oxide Semiconductor FET, SOIC-8 package. Features 60V drain-source breakdown voltage, 4.7A continuous drain current, and low 55mR drain-source on-resistance. Operates across a -55°C to 150°C temperature range with a 2.1W maximum power dissipation. Surface mountable with tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes ZXMC4559DN8TA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes ZXMC4559DN8TA technical specifications.
| Package/Case | SOIC |
| Continuous Drain Current (ID) | 4.7A |
| Current Rating | 4.7A |
| Drain to Source Breakdown Voltage | 60V |
| Drain to Source Resistance | 75mR |
| Drain to Source Voltage (Vdss) | 60V |
| Drain-source On Resistance-Max | 105mR |
| Dual Supply Voltage | 60V |
| Fall Time | 10ns |
| FET Type | N and P-Channel |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.5mm |
| Input Capacitance | 1.063nF |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2.1W |
| Mount | Surface Mount |
| Nominal Vgs | 1V |
| Number of Channels | 2 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL, P-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 55mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Threshold Voltage | 1V |
| Turn-Off Delay Time | 35ns |
| Turn-On Delay Time | 3.5ns |
| Weight | 0.00261oz |
| Width | 4mm |
| RoHS | Compliant |
