N-channel MOSFET for power applications, featuring a 60V drain-source voltage and 11.8A continuous drain current. Offers a low 40mΩ maximum drain-source on-resistance. This surface-mount component, housed in a TO-252-3 (DPAK) package, operates within a -55°C to 150°C temperature range and supports a maximum power dissipation of 10.1W. It is lead-free, RoHS compliant, and REACH SVHC compliant.
PackageTO-252-3
Current Rating11.2A
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Diodes ZXMN6A09KTC technical specifications.
General
| Package/Case | TO-252-3 |
| Continuous Drain Current (ID) | 11.8A |
| Current Rating | 11.2A |
| Drain to Source Resistance | 40mR |
| Drain to Source Voltage (Vdss) | 60V |
| Drain-source On Resistance-Max | 40mR |
| Fall Time | 14.5ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 2.39mm |
| Input Capacitance | 1.426nF |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 10.1W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 40mR |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 32.5ns |
| Turn-On Delay Time | 4.8ns |
| DC Rated Voltage | 60V |
| Weight | 0.139332oz |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ZXMN6A09KTC Datasheet
Download the complete datasheet for Diodes ZXMN6A09KTC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

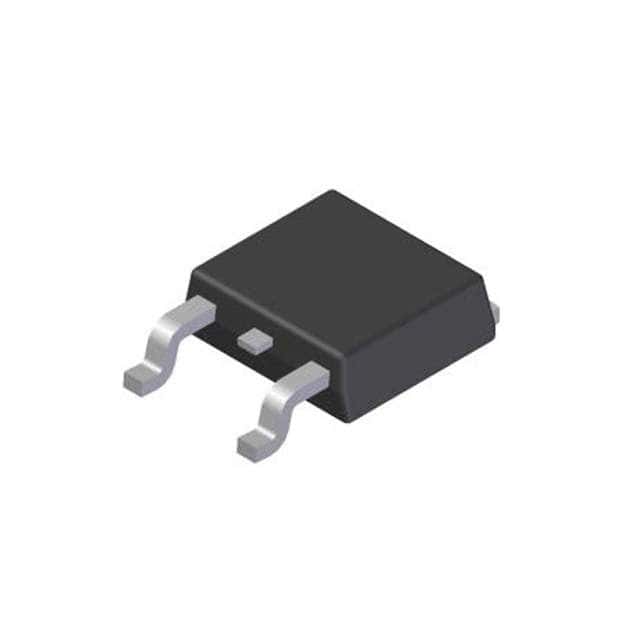

Product Images
