P-channel JFET, surface mount, SOT-223 package. Features continuous drain current of 7.5A, drain-source voltage of -30V, and a maximum drain-source on-resistance of 45mR. Operates with a gate-source voltage up to 20V, exhibiting turn-on delay of 3.8ns and fall time of 21.4ns. Maximum power dissipation is 2W, with an operating temperature range of -55°C to 150°C. RoHS compliant.
PackageSOT-223
Current Rating-7.5A
MountingSurface Mount
PolarityP-CHANNEL
Quick Jump:
Technical Specifications
Diodes ZXMP3A16GTA technical specifications.
General
| Package/Case | SOT-223 |
| Continuous Drain Current (ID) | 7.5A |
| Current Rating | -7.5A |
| Drain to Source Resistance | 45mR |
| Drain to Source Voltage (Vdss) | -30V |
| Drain-source On Resistance-Max | 45mR |
| Fall Time | 21.4ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.65mm |
| Input Capacitance | 1.022nF |
| Lead Free | Lead Free |
| Length | 6.7mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 3.9W |
| Radiation Hardening | No |
| Rds On Max | 45mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | -1V |
| Turn-Off Delay Time | 37.1ns |
| Turn-On Delay Time | 3.8ns |
| DC Rated Voltage | -30V |
| Weight | 0.000282oz |
| Width | 3.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ZXMP3A16GTA Datasheet
Download the complete datasheet for Diodes ZXMP3A16GTA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

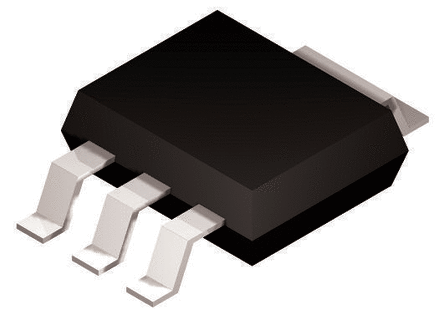

Product Images
