Technical Specifications
Diodes ZXRE060AFT4-7 technical specifications.
General
| Package/Case | DFN EP |
| Cathode Current | 300uA |
| Max Input Voltage | 20V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 15mA |
| Max Output Voltage | 18V |
| Min Output Voltage | 200mV |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current | 15mA |
| Output Type | Adjustable |
| Output Voltage | 18V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Reference Type | Shunt, Adjustable |
| RoHS Compliant | Yes |
| Tolerance | 0.5% |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ZXRE060AFT4-7 Datasheet
Download the complete datasheet for Diodes ZXRE060AFT4-7 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

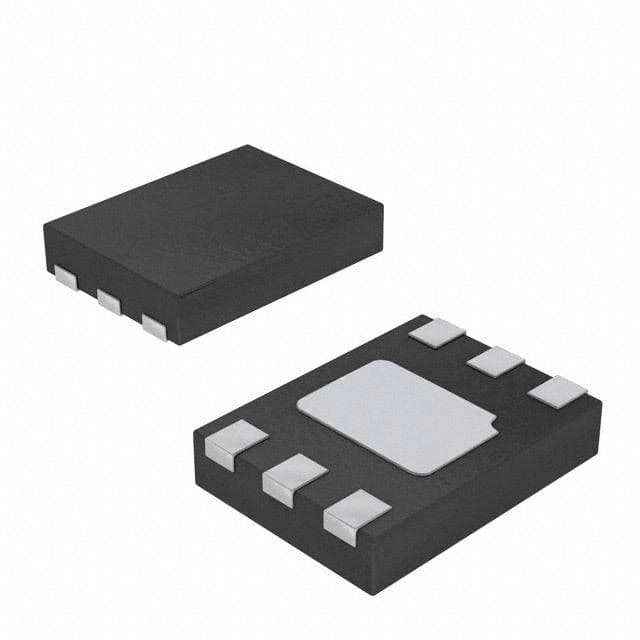

Product Images
