NPN silicon bipolar junction transistor in a SOT-23 surface mount package. Features a 100V collector-emitter breakdown voltage and a 4A maximum collector current. Offers a 150mV collector-emitter saturation voltage and a 130MHz transition frequency. Designed for operation between -55°C and 150°C with a maximum power dissipation of 1.56W.
Frequency130MHz
PackageSOT-23
Current Rating4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes ZXTN2020FTA technical specifications.
General
| Package/Case | SOT-23 |
| Collector Base Voltage (VCBO) | 160V |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 150mV |
| Collector Emitter Voltage (VCEO) | 100V |
| Collector-emitter Voltage-Max | 150mV |
| Current Rating | 4A |
| Emitter Base Voltage (VEBO) | 7V |
| Frequency | 130MHz |
| Gain Bandwidth Product | 130MHz |
| Height | 1mm |
| hFE Min | 100 |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Breakdown Voltage | 100V |
| Max Collector Current | 4A |
| Max Frequency | 130MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.56W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 1.56W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Transition Frequency | 130MHz |
| DC Rated Voltage | 100V |
| Weight | 0.000282oz |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ZXTN2020FTA Datasheet
Download the complete datasheet for Diodes ZXTN2020FTA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

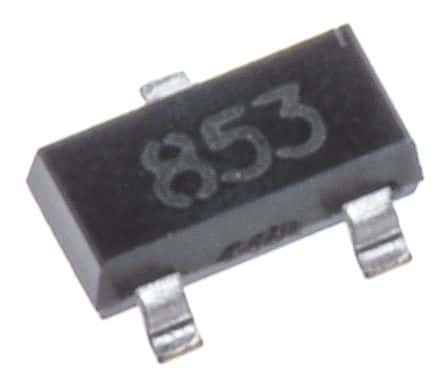

Product Images
