NPN bipolar junction transistor for surface mount applications. Features a 12V collector-emitter breakdown voltage (VCEO) and a continuous collector current of 6.5A. Offers a maximum power dissipation of 4.46W and a transition frequency of 260MHz. Packaged in a 3-pin SOT-89 case, this lead-free and RoHS compliant component operates within a temperature range of -55°C to 150°C.
Frequency260MHz
PackageSOT-89-3
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Diodes ZXTN25012EZTA technical specifications.
General
| Package/Case | SOT-89-3 |
| Collector Base Voltage (VCBO) | 20V |
| Collector Emitter Breakdown Voltage | 12V |
| Collector Emitter Saturation Voltage | 38mV |
| Collector Emitter Voltage (VCEO) | 12V |
| Collector-emitter Voltage-Max | 270mV |
| Continuous Collector Current | 6.5A |
| Emitter Base Voltage (VEBO) | 7V |
| Frequency | 260MHz |
| Gain Bandwidth Product | 260MHz |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Breakdown Voltage | 12V |
| Max Collector Current | 6.5A |
| Max Frequency | 100MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 4.46W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 4.46W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 260MHz |
| Weight | 0.004603oz |
| Width | 2.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ZXTN25012EZTA Datasheet
Download the complete datasheet for Diodes ZXTN25012EZTA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

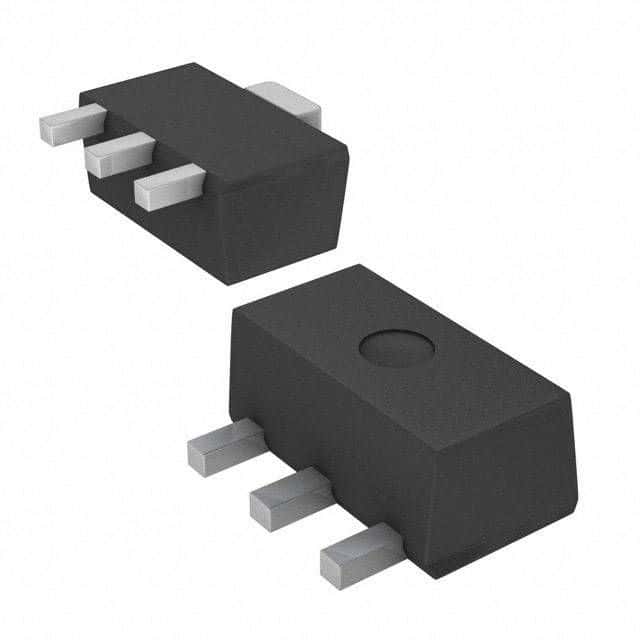

Product Images
