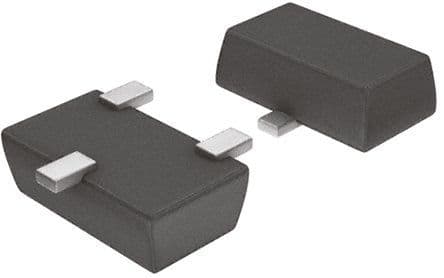

PNP Silicon Bipolar Junction Transistor for small signal applications. Features a maximum collector current of 5.5A and a collector-emitter breakdown voltage of 20V. Offers a collector-emitter saturation voltage of -44mV and a transition frequency of 176MHz. Packaged in a SOT-23-3 surface mount case, this component operates within a temperature range of -55°C to 150°C. It is RoHS and REACH SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes ZXTP19020DFFTA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-23-3 |
| Collector Base Voltage (VCBO) | 25V |
| Collector Emitter Breakdown Voltage | 20V |
| Collector Emitter Saturation Voltage | -44mV |
| Collector-emitter Voltage-Max | 175mV |
| Emitter Base Voltage (VEBO) | 7V |
| Gain Bandwidth Product | 176MHz |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Breakdown Voltage | 20V |
| Max Collector Current | 5.5A |
| Max Frequency | 176MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Transition Frequency | 176MHz |
| Width | 1.7mm |
| RoHS | Compliant |
