Positive fixed 12V linear voltage regulator with a 47mA output current. Features a 3V dropout voltage and 10% accuracy, operating from a 15V to 100V input range. Housed in a SOT-89 surface mount package, this component offers a maximum power dissipation of 1.7W and a quiescent current of 900uA. Designed for automotive applications, it operates across a temperature range of -40°C to 125°C.
PackageSOT-89
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Diodes ZXTR2012Z-7 technical specifications.
General
| Accuracy | 10% |
| Package/Case | SOT-89 |
| Dropout Voltage | 3V |
| Height | 1.6mm |
| Length | 4.6mm |
| Max Input Voltage | 100V |
| Min Input Voltage | 15V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 47mA |
| Min Output Voltage | 12V |
| Max Power Dissipation | 1.7W |
| Max Supply Current | 900uA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 47mA |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 45dB |
| Quiescent Current | 900uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Width | 2.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ZXTR2012Z-7 Datasheet
Download the complete datasheet for Diodes ZXTR2012Z-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

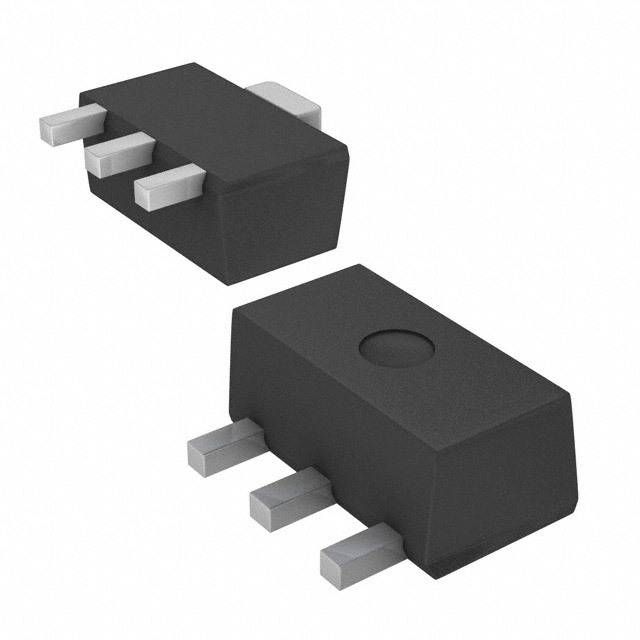

Product Images
