Surface mount rectifier diode featuring a single silicon element. Delivers 150mA forward current with a 75V reverse voltage rating. Maximum repetitive reverse voltage is 100V, and maximum reverse current is 1A. Operates across a wide temperature range from -55°C to 150°C. RoHS compliant and housed in a plastic package with a height of 1.1mm.
MountingSurface Mount
Quick Jump:
Technical Specifications
Diotec 1N4148WS technical specifications.
General
| Element Configuration | Single |
| Forward Current | 150mA |
| Height | 1.1mm |
| Max Forward Surge Current (Ifsm) | 1A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 1uA |
| Mount | Surface Mount |
| Peak Non-Repetitive Surge Current | 1A |
| Reverse Voltage | 75V |
| RoHS Compliant | Yes |
| Weight | 20mg |
Compliance
| RoHS | Compliant |
Datasheet
Diotec 1N4148WS Datasheet
Download the complete datasheet for Diotec 1N4148WS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

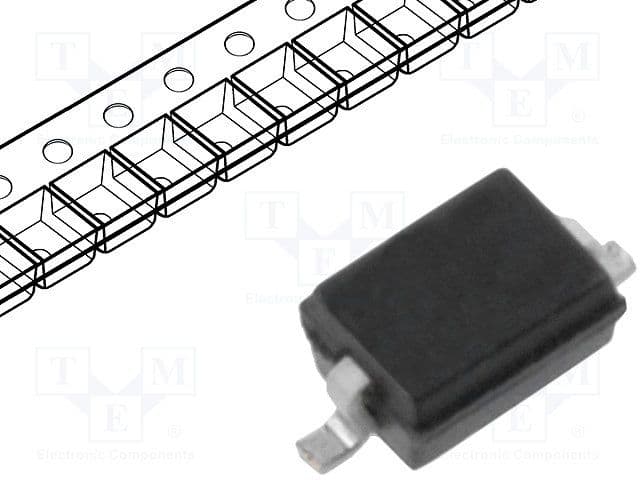

Product Images
