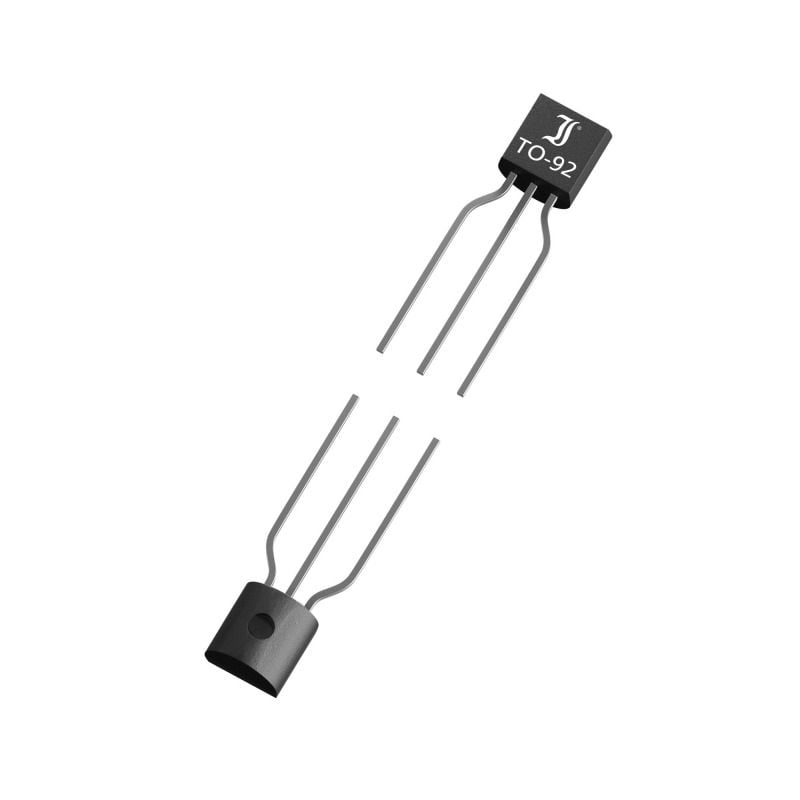

This NPN silicon epitaxial planar transistor is intended for general-purpose switching and amplification in a TO-92 wire-lead package. It supports 40 V collector-emitter voltage, 625 mW power dissipation, and a maximum junction temperature of 150 °C. The device is specified with a DC current gain of 100 at VCE = 1 V and IC = 10 mA, and a gain-bandwidth product of 300 MHz at VCE = 20 V and IC = 10 mA. Diotec classifies it as Industrial Grade and supplies it in taped ammo-pack packaging.
Sign in to ask questions about the Diotec 2N3904 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diotec 2N3904 technical specifications.
| Max Operating Temperature | 150 |
| Number of Terminals | 3 |
| Terminal Position | BOTTOM |
| JEDEC Package Code | TO-92 |
| Pin Count | 3 |
| Number of Elements | 1 |
| RoHS | Yes |
| Eccn Code | EAR99 |
| REACH | Compliant |
| Military Spec | False |
Download the complete datasheet for Diotec 2N3904 to view detailed technical specifications.
