BC817-16

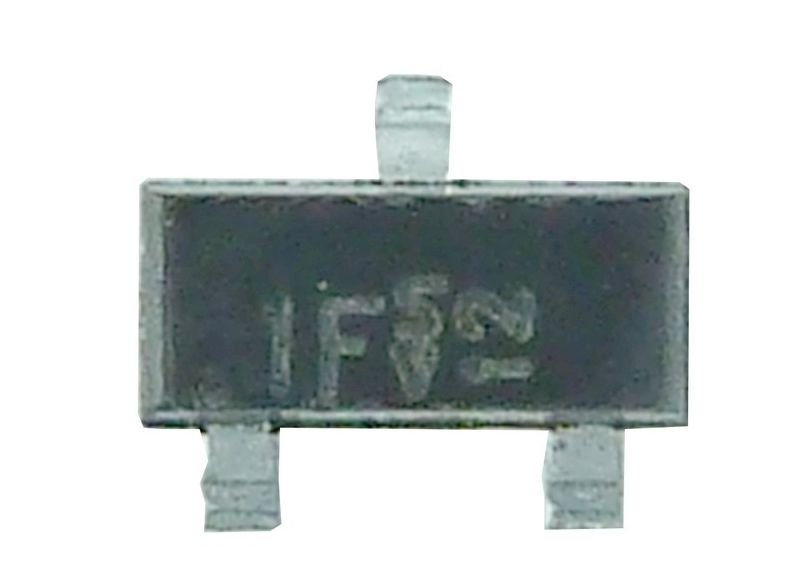

This device is a single NPN bipolar junction transistor in an SOT-23 surface-mount package. It is specified for a collector-emitter voltage of 45 V and a DC collector current of 800 mA. The transistor has a power dissipation rating of 0.310 W and a maximum junction temperature of 150 °C. Diotec classifies it as Industrial Grade and marks the life cycle as active. The product page lists a DC current gain of 160 at VCE = 1 V and IC = 100 mA, a collector saturation voltage of 700 mV at IC = 500 mA and IB = 50 mA, and a gain-bandwidth product of 100 MHz.
