Diotec
P6KE33A
Trans Voltage Suppressor Diode, 600W, 28.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-41,
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Diotec P6KE33A technical specifications.
General
| Clamping Voltage | 45.7V |
| Leakage Current | 5uA |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Packaging | Ammo Pack |
| Peak Pulse Current | 13.2A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Reverse Breakdown Voltage | 31.4V |
| Reverse Standoff Voltage | 28.2V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Diotec P6KE33A Datasheet
Download the complete datasheet for Diotec P6KE33A to view detailed technical specifications.
No datasheet is available for this part.

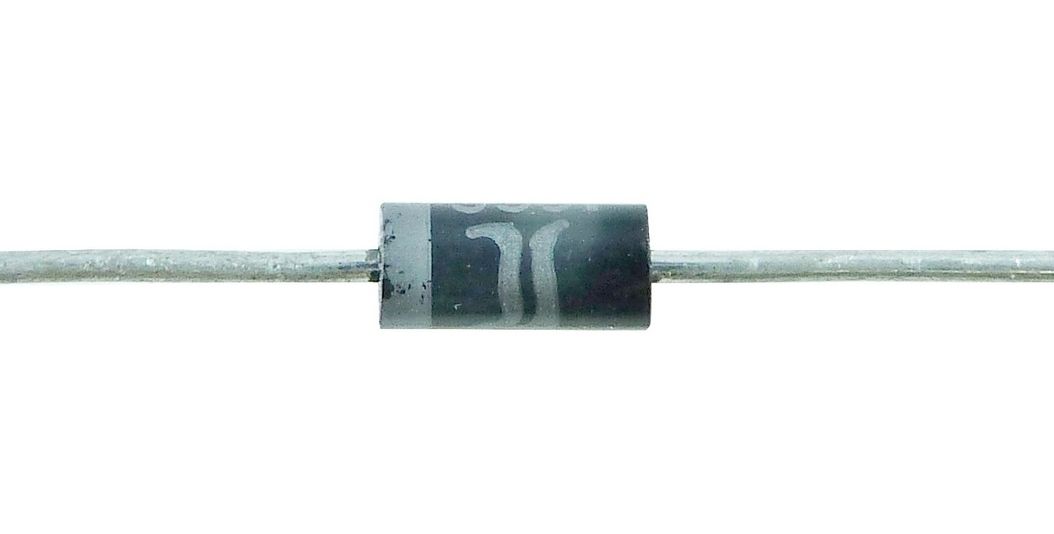

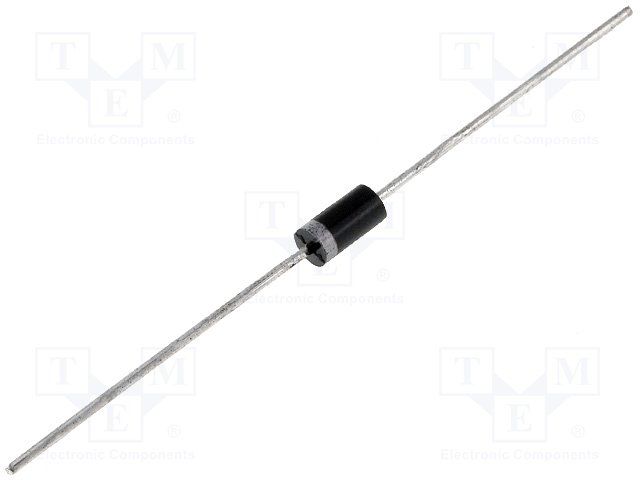

Product Images
