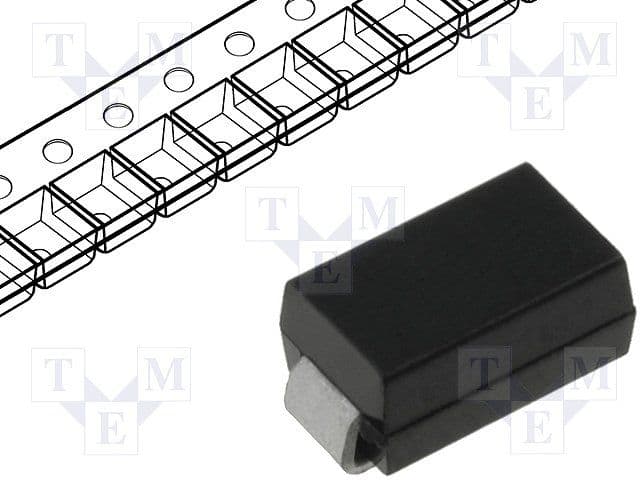

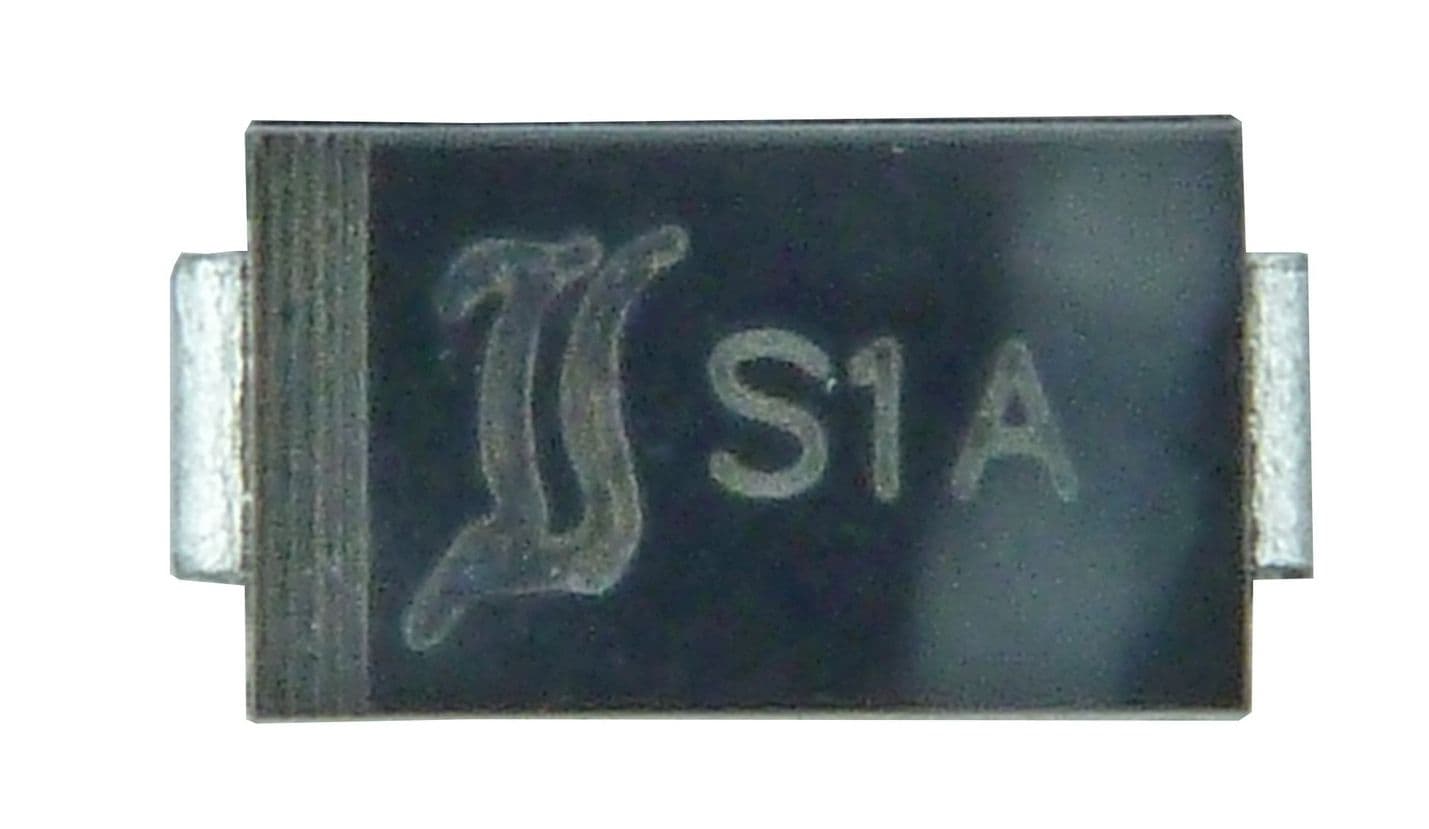

This general purpose rectifier is a single-element device with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It is available in a surface mount package and is packaged on a tape and reel. The device is RoHS compliant and has a peak non-repetitive surge current of 40A.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diotec S1D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Current | 1A |
| Element Configuration | Single |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 40A |
| RoHS Compliant | Yes |
| Voltage | 200V |
| RoHS | Compliant |
Download the complete datasheet for Diotec S1D to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Diotec S1D
A 45 W dual output (12V/15V) reference design using Infineon's ICE184EM CoolSET SiP, featuring ZVS technology, high efficiency, and integrated protection for home appliances.
