SPST-NO tactile switch with a 25mA current rating and 50V DC voltage rating. Features a green polycarbonate actuator with a 2.5mm length and 0.6mm travel. Offers 1 million electrical and mechanical cycles, with copper alloy contacts plated in silver. Through-hole mount design with PC pin termination, operating from -20°C to 70°C.
Current Rating25mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch 320.01E11GRN technical specifications.
General
Actuator Color
Green
Actuator Length
2.5mm
Actuator Material
PC, Polycarbonate
Contact Current Rating
25mA
Contact Material
Copper Alloy
Contact Plating
Silver
Current Rating
25mA
Electrical Life
1000000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
12.5mm
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
50V
Mount
Through Hole
Number of Positions
2
Operating Force
135gf
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Series
320
Switch Function
Off-Mom
Switch Travel
0.6mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
50V
Width
12.5mm
Compliance
RoHS
Compliant
Datasheet
E-Switch 320.01E11GRN Datasheet
Download the complete datasheet for E-Switch 320.01E11GRN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

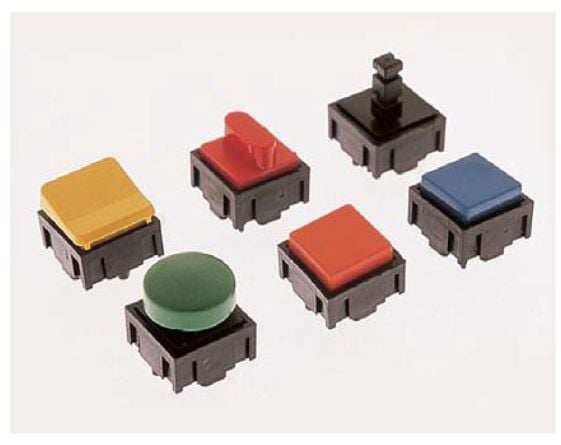

Product Images
