SPDT slide switch featuring a latched mechanism and through-hole mounting. This non-illuminated switch offers a 2-position, On-On function with a 2.5mm travel and 250gf operating force. Rated for 30V, it handles a contact current of 200mA with silver-plated copper alloy contacts. Designed for straight orientation with solder terminals, it operates within a -20°C to 70°C temperature range and boasts an electrical life of 10,000 cycles.
PackageSOT-23-5
Voltage Rating30V
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch EG1218 technical specifications.
General
Actuator Length
2mm
Actuator Type
Standard
Package/Case
SOT-23-5
Contact Current Rating
200mA
Contact Material
Copper Alloy, Copper, Silver
Contact Plating
Silver
Dropout Voltage
300mV
Electrical Life
10000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Min Input Voltage
4.3V
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Output Current
150mA
Mount
Through Hole
Nominal Output Voltage
3.3V
Number of Positions
2
Operating Force
250gf
Orientation
Straight
Output Current
150mA
Output Voltage
3.3V
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EG
Switch Function
On-On
Switch Travel
2.5mm
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating
30V
Voltage Rating (AC)
30V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
E-Switch EG1218 Datasheet
Download the complete datasheet for E-Switch EG1218 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

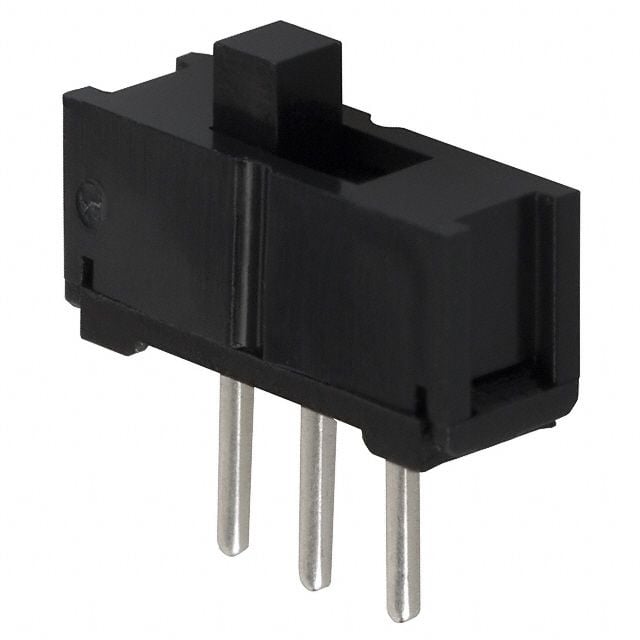

Product Images
