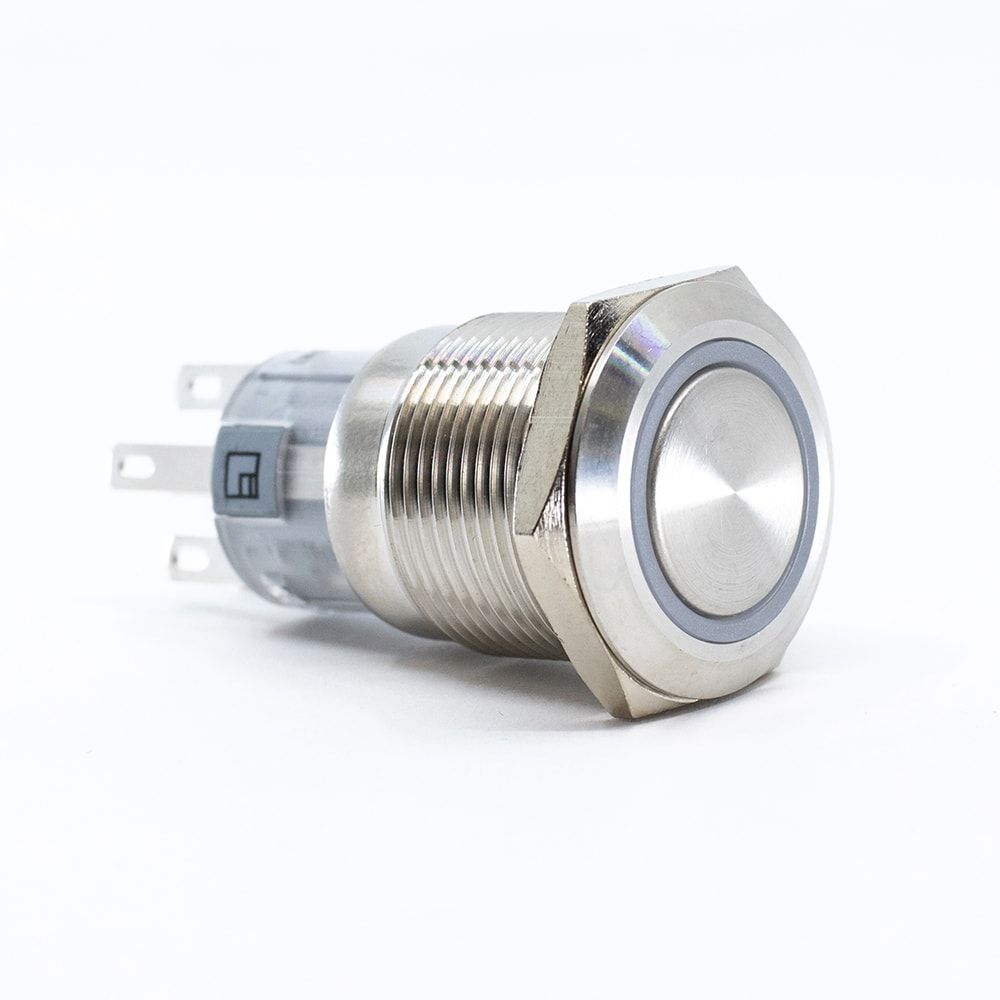

DPDT momentary pushbutton switch featuring a flat, round silver actuator with blue LED illumination. Rated for 2A at 48VDC, this panel-mount switch offers a solder lug termination and boasts an electrical life of 50,000 cycles and a mechanical life of 1,000,000 cycles. It operates within a temperature range of -20°C to 55°C and provides IP65, water-resistant, and dust-tight protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the E-Switch PV4F2H0SS-341 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Round, Button, Flush |
| Color | Silver |
| Contact Plating | Silver |
| Current Rating | 2A |
| Electrical Life | 50000Cycles |
| Illumination Color | Blue |
| Illumination Type | LED |
| Lead Free | Lead Free |
| Max Operating Temperature | 55°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Panel, Front |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| Series | PV4, LAMB |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | DPDT |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
