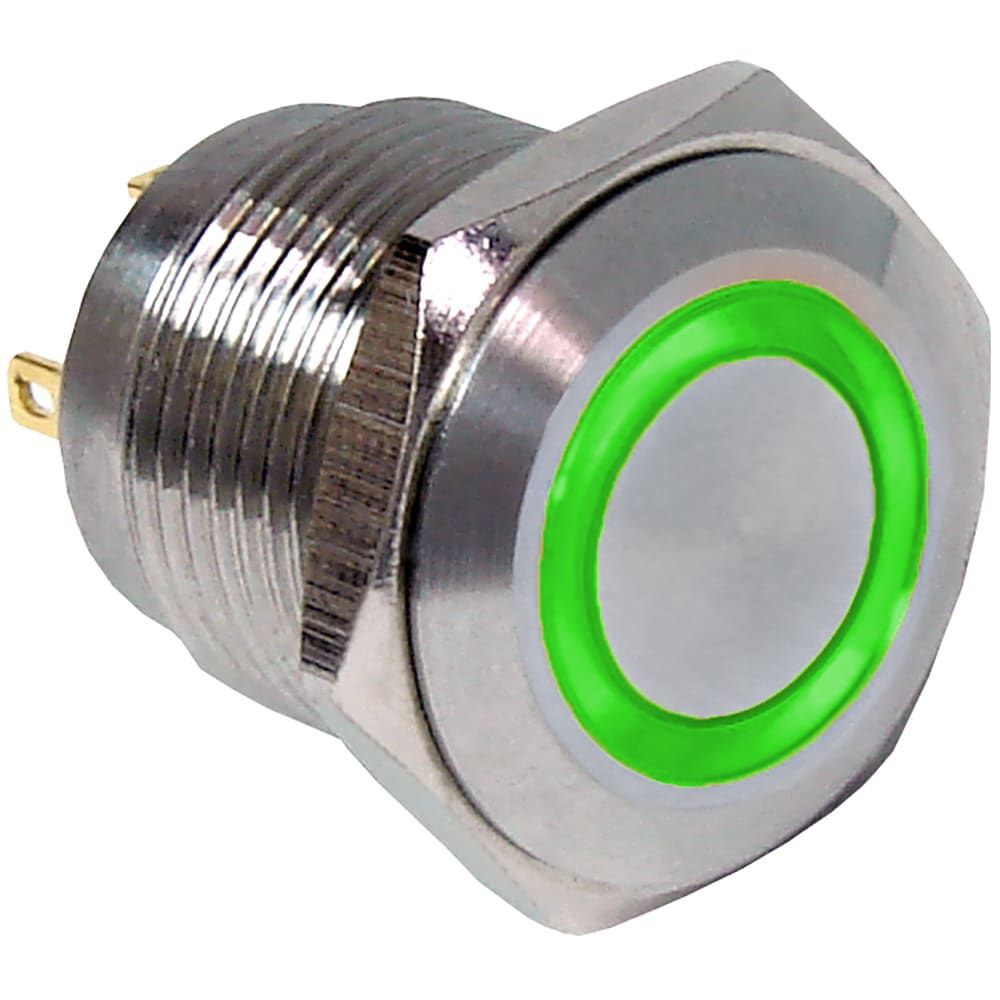

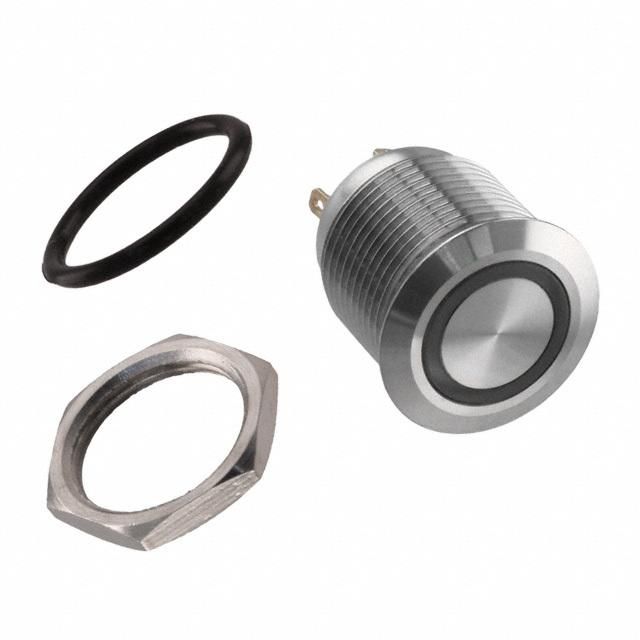

Illuminated pushbutton switch featuring a momentary SPST contact configuration. Offers a 2A current rating at 48VDC, with a silver contact material and plating. Designed for panel mounting with a straight solder termination and a flush, round stainless steel button. Rated IP65 for water and dust resistance, this RoHS compliant component boasts an electrical life of 200,000 cycles and a mechanical life of 1,000,000 cycles. Features green LED illumination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the E-Switch PV6F240SS-331 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
E-Switch PV6F240SS-331 technical specifications.
| Actuator Length | 0mm |
| Actuator Material | Stainless Steel |
| Actuator Type | Round, Button, Flush |
| Color | Silver |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 2A |
| Electrical Life | 200000Cycles |
| Illumination Color | Green |
| Illumination Type | LED |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 48V |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Panel, Front |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | PV6, LAMB |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| DC Rated Voltage | 48V |
| RoHS | Compliant |
